AHE8X8X4 | Hoffman Enclosures | Enclosures

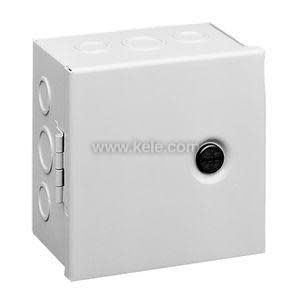

Pull Box, Hinged Cover, Bulletin A90HC (Hinge cover cut-out box), Size/Dims: 8.00x8.00x4.00, Material/Finish: Steel/Gray
Brand:Hoffman Enclosures
MPN:AHE8X8X4
SKU:HC884
List Price:
$120.00
Today's Price:
$62.40
Log in for customized pricingproduct specifications
Type
Enclosure Only
Material
Steel
Enclosure Width
8 in
Enclosure Height
8 in
Enclosure Depth
4 in
Enclosure Rating
NEMA 1
Mount
Hinged
product series features
- 16-gauge steel construction meets NEMA 1
- Removable doors with butt hinges
- Door hinge on left or right side
- Mounting holes on back of enclosure
- Easy operation of flush latch with a screwdriver or coin
- Various sizes of easily removable knockouts on all sides
- ANSI 61 gray polyester-powder finish inside and out over phosphatized surfaces
- Available with optional perf panel
- UL File #E27525
- CSA File #LL42184, RoHs
- One-year warranty
more information & related documents
Series Description
The HC series NEMA 1 hinge cover boxes serve as surface-mounted junction boxes or switch boxes. With the addition of a field-installed perforated subpanel, they can also house controls and instruments in areas that do not require oil-tight and dust-tight ratings.
Kele Description
NEMA 1 8 X 8 X 4 HINGED ENCLOSURE
Manufacturer
Hoffman Enclosures
