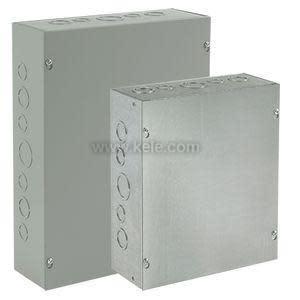

Two steel electrical enclosures with punch‑out holes.

ASE24X18X12 | Hoffman Enclosures | Enclosures

Pull Box, Screw Cover / KO's, Bulletin A90P1 (Pull Boxes Type1), Size/Dims: 24.00x18.00x12.00, Material/Finish: Steel/Gray

Brand:Hoffman Enclosures

MPN:ASE24X18X12

SKU:ASE24X18X12

List Price:

$1,155.00

Today's Price:

$600.60

product datasheet

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

Enclosure Only

Enclosure Width

18 in

Enclosure Height

24 in

Enclosure Depth

12 in

Mount

Screw

product series features

16-gauge steel construction to meet NEMA 1
Flat, removable covers fastened with plated steel screws
Unique keyhole screw slots in cover for removal without extracting the screws
Mounting holes on back of enclosure
Various sizes of easily removable knockouts on all sides
ANSI 61 gray polyester-powder finish inside and out over phosphatized surfaces
Available with optional perf panel
UL listed File #E27525
CSA certified, File #LL42184
One-year warranty

more information & related documents

Series Description

The Hoffman ASE Series Screw Cover Boxes serve as surface-mounted junction boxes or switch boxes. With the addition of a field-installed perforated subpanel, they can also house controls and instruments in areas that do not require oil-tight and dust-tight ratings.

Kele Description

NEMA 1 24X18X12 SCREW COVER ENC

Manufacturer

Hoffman Enclosures
