AHE12X10X6P | Hoffman Enclosures | Enclosures

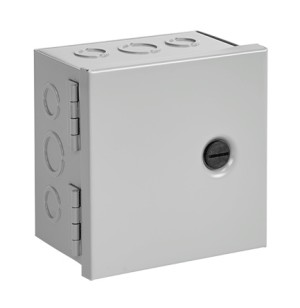

12 x 10 x 6 NEMA 1 Hinged Cover Enclosure with Perf Panel
Brand:Hoffman Enclosures
MPN:AHE12X10X6P
SKU:AHE12X10X6P
5 in stock
product specifications
Enclosure Rating
NEMA 1
Material
Metallic
Mount
Hinged
Type
Enclosure w/Perf
Enclosure Width
10 in
Enclosure Height
12 in
Enclosure Depth
6 in
product series features
- 16-gauge steel construction meets NEMA 1
- Removable doors with butt hinges
- Door hinge on left or right side
- Mounting holes on back of enclosure
- Easy operation of flush latch with a screwdriver or coin
- Various sizes of easily removable knockouts on all sides
- ANSI 61 gray polyester-powder finish inside and out over phosphatized surfaces
- Available with optional perf panel
- UL listed, File #E27525
- CSA certified, File #LL42184
- One-year warranty
more information & related documents
Series Description
The Hoffman AHE Series NEMA 1 Hinge Cover Boxes serve as surface-mounted junction boxes or switch boxes. With the addition of a field-installed perforated subpanel, they can also house controls and instruments in areas that do not require oil- and dust-tight ratings
Kele Description
NEMA 1 12X10X6 HINGED ENCL W/PERF
Manufacturer
Hoffman Enclosures
Related Documents
AHE series datasheet x
