SCE24EL2408LP | Saginaw Control & Engineering | Enclosures

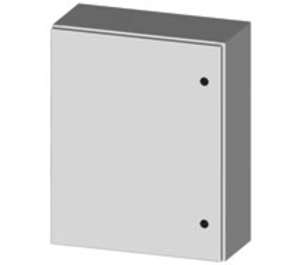

NEMA 4/12/13 24X24X8 ENVIROLINE ENCL
Brand:Saginaw Control & Engineering
MPN:SCE24EL2408LP
SKU:SCE24EL2408LP
List Price:
$1,630.00
Today's Price:
$847.60
Log in for customized pricingproduct specifications
Type
Enclosure Only
Material
Metallic
Enclosure Width
24 in
Enclosure Height
24 in
Enclosure Depth
8 in
Mount
Hinged
product series features
- Minimum width body flange for maximum door opening
- Hidden hinges for clean aesthetic appearance
- Door removable
- Seamless foam-in-place one-piece gasket for oil-tight and dust-tight seal
- Panel-mounting studs for optional subpanels and accessories
- Removable data pocket
- UL listed, File #E69392
- CSA certified
- Rated NEMA 4, 12, and 13
- ANSI 61 gray polyester powder coating inside and out with white panels
more information & related documents
Series Description
The Saginaw Eniroline Series features NEMA 4, NEMA 12, and NEMA 13 rated enclosures and panels. The EL Series electrical boxes are attractive, single-door wall-mounted enclosures designed to safely house electrical and pneumatic components. Indispensable for building automation systems, BAS, and HVAC applications, Saginaw enclosures are manufactured from 14 gauge steel. Seams for each enclosure are continuously welded and ground smooth, so there are no holes and knock-outs. These NEMA enclosures provide protection from dust, dirt, oil, and water.
Kele Description
NEMA 4/12/13 24X24X8 ENVIROLINE ENCL
Manufacturer
Saginaw Control & Engineering
