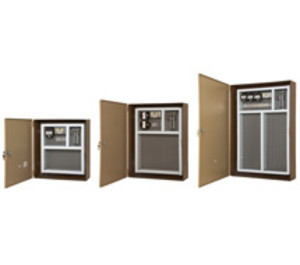

NSTA2018VA100 | Kele | Enclosures

Supply Voltage:

NSTA2018VA100, NSTA2016412-GY: (1) 120/24 VAC transformer, 100 VA

NSTA2620VA200, NSTA2420412-GY: (2) 120/24 VAC transformers, 100 VA (200 VA total)

NSTA3826VA300, NSTA3624412-GY: (3) 120/24 VAC transformers, 100 VA (300 VA total)

Convenience Outlet: 120 VAC, 3 A maximum

Enclosure Size:

NSTA2018VA100: 20"H x 18"W x 7"D (50.8 x 45.7 x 17.8 cm)

NSTA2016412-GY: 20"H x 16"W x 8"D (51.0 x 30.0 x 20.0 cm)

NSTA2620VA200: 26"H x 20"W x 7"D (66 x 50.8 x 17.8 cm)

NSTA2420412-GY: 24"H x 20"W x 8"D (61.0 x 51.0 x 20.0 cm)

NSTA3826VA300: 38"H x 26"W x 7"D (96.5 x 66 x 17.8 cm)

NSTA3624412-GY: 36"H x 24"W x 8"D (91.0 x 61.0 x 20.0 cm)

Interior Panel Mounting Dimensions:

NSTA2018VA100: 7.375"H x 13.125"W (18.7 x 33.3 cm)

NSTA2016412-GY: 7.375"H x 13.125"W (18.7 x 33.3 cm)

NSTA2620VA200: 13.0" H x 15.375" W (33.0 x 39.0 cm)

NSTA2420412-GY: 13.0" H x 15.375" W (33.0 x 39.0 cm)

NSTA3825VA300: 24.0" H x 20" W (61.0 x 50.8 cm)

NSTA3624412-GY: 24.0" H x 20" W (61.0 x 50.8 cm)

Panel Color: Dark brown body and light tan door, Dark blue body and door, Gray body and door (NEMA 4/12 only) Dark blue body and powder blue door

Weight:

NSTA2018VA100: 31 lb (14 Kg)

NSTA2016412-GY: 36.2 lb (16.4 Kg)

NSTA2620VA200: 45 lb (20.4 Kg)

NSTA2420412-GY: 53.3 lb (24.2 Kg)

NSTA3826VA300: 71 lb (32.2 Kg)

NSTA3624412-GY: 88.6 lb (40.2 Kg)

Warranty: 1 year
