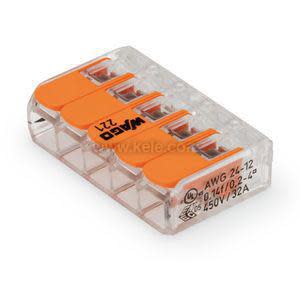

221-0415/VE00-1000 | Wago | Electrical Wiring Materials
5 Conductor Connector 1000 Pc Box
Brand:Wago
MPN:221-0415/VE00-1000
SKU:221-415J
List Price:
$1,558.00
Today's Price:
$810.16
Log in for customized pricingproduct specifications
Direction
Side-entry wiring
Type
Connector
Terminal Connection
5 Conductor
Wire Guage
Multiple Range
AWG Size
Multiple Range
product series specifications
Voltage Rating: 600 V
Current Rating: 20 A maximum
Wire Size: 24-12 AWG
Number Of Conductors: 2, 3, 5
Operating Temperature: 221°F (105°C) maximum
Strip Length: Strip to 11 mm
Dimensions:
221-412: 1.9 x 1.3 x 0.8 cm
221-413: 1.9 x 1.9 x 0.8 cm
221-415: 1.9 x 3.0 x 0.8 cm
Approvals: UL File #E69654
Warranty: 1 year
product series features
- Connect any combination of solid, stranded, and flexible copper wires faster and more reliably
- Minimize space consumption in the junction box by 40% compared to 222 Series
- Visually inspect for proper strip length and complete wire insertion through its transparent housing
- Operate comfortably and with lower operating forces by using familiar orange levers
- Two test slots
more information & related documents
Series Description
The Wago Compact Splicing Connectors for 2, 3, and 5 conductors.
Kele Description
5 CONDUCTOR CONNECTOR 1000 PC BOX
Manufacturer
Wago
