TUVCL-232HO | Fresh-Aire UV | Disinfection Solutions
REPLACEMENT LAMP 32" HIGH OUTPUT LAMP WITH 2 YEAR WARRANTY
Brand:Fresh-Aire UV
MPN:TUVCL-232HO
SKU:TUVCL-232HO
product specifications
Type
Replacement Lamp
Size
32 in
Supply Voltage (Nominal)
120 VAC, 240 VAC, 277 VAC
product series specifications
- †UV Lamp:
- †254 nm germicidal UV-C, quartz hot filament
- †Dimensions:
- †Lamp: 15‚ÄùL x 0.74‚Äù Dia.;†ER Power Supply: 4.1‚ÄùW x 1.7‚Äù H x 1.8‚ÄùD;†ST Power Supply: 5.0‚ÄùW x 1.1‚Äù H x 2.4‚ÄùD††
- †ER models†Electrical:
- †18-32 VAC, 60 Hz;†0.68 Amps, 16 VA†
- †ST models†Electrical:
- †120-277 VAC, 50/60 Hz;†0.51 Amps/120V Thru 0.22 Amps/277V†
- †Kit Includes:
- †‚Ä¢Power Supply,†‚Ä¢6‚Äô Lamp Cable,†‚Ä¢UV Lamp,†‚Ä¢Magnetic†'Z‚Äô Bracket,†‚Ä¢Mounting Hardware,†‚Ä¢Panel Indicator,†‚Ä¢Installation Sticker†
- †Warranty:
- †Lifetime for all parts except lamp
- †Approval:
- †Made in the USA
product series features
- Easy to install
- Fits coils from 18 in. x 32 in. to 72 in. x 72 in.
- 2 year guaranteed lamp life
- Includes everything needed for most installations
- Scalable design for multi-lamp configurations
- Lifetime warranty on all parts except lamp(s)
- Water-resistant heavy-duty power supply
- Optional door interlock switch (TUVC-INTLCK)
more information & related documents
Series Description

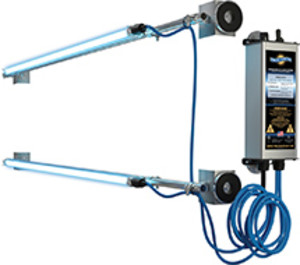

The Fresh-Aire UV BLUE-TUBE XLTM Series is designed for installation in commercial air handling units and rooftop package units for the purpose of surface or airborne disinfection using ultraviolet germicidal irradiation. For maximum installation flexibility and cost-effectiveness, the UV lamps are mounted onto a framework of standard 0.5 in. EMT tubing (included). The remotely mounted, weather-resistant power supply can withstand the wet environment found inside air handlers or the exposed conditions of outdoor packaged air-conditioning systems. The number and placement of lamps is determined by several factors, including coil dimensions and condition or if airborne disinfection is desired. BLUE-TUBE XLTM has everything needed for complete installation in most AHU and RTU equipment.
Kele Description
REPLACEMENT LAMP 32" HIGH OUTPUT LAMP WITH 2 YEAR WARRANTY
Manufacturer
Fresh-Aire UV
3rd Party Test Results
