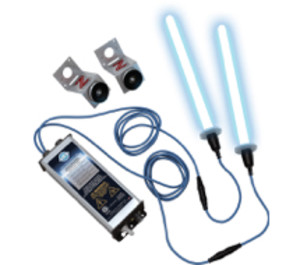

* product series image displayed
TUV-100D-I-P | Fresh-Aire UV | Disinfection Solutions
AHU 120-277 VAC, GERMICIDAL UV LIGHT DUAL 1YR LAMP
Brand:Fresh-Aire UV
MPN:TUV-100D-I-P
SKU:TUV-100D-I-P
List Price:
$1,005.00
Today's Price:
$522.60
Log in for customized pricingproduct specifications
Type
Germicidal Lamp
Size
15 in
Number of Lamps
2
Supply Voltage (Nominal)
120 VAC, 240 VAC, 277 VAC
product series specifications
- †UV Lamp:
- 254 NM germicidal UV-C, unshielded quartz hot filament
- †One-year-lamp Dimensions:
- †15‚ÄùL x 0.74‚Äù Dia
- †Two-year-lamp Dimensions:
- †15‚ÄùL x 1‚Äù Dia
- † Single & Dual Power Supply:
- †Auto-switching multi-voltage 0.51A /120V-0.22A /277V
- † Triple & Quad Power Supply:
- †Auto-switching multi-voltage 1.02A /120V-0.44A /277V
- †Single and Dual Power Supply Dimensions:
- †8.75‚ÄùL x 3.5‚Äù W x 2.5‚ÄùD
- †Triple and Quad Models Power Supply Dimensions:
- †13‚ÄùL x 3.5‚Äù W x 2.5‚ÄùD
- †Kit Includes:
- †‚Ä¢ UV Lamp
• Power Supply
• UV Warning Sticker
• “Z” Mounting Bracket
• Self-Tapping Screws
• Sight Glass, Quick-Nut (plastic) IMPORTANT!
• Spade Connectors
- †Warranty:
- †Lifetime for all parts except the lamp(s)†
- †Approval:
- †Made in the USA
product series features
- Water-resistant, shielded lamp design for stable UV operation
- High-efficiency electronic ballast for optimum lamp performance
- Automatic input voltage selection from 120 to 277 VAC 50/60 Hz.
more information & related documents
Series Description
The Fresh-Aire UV® AHU Series 1 germicidal UV light system for central air systems features a robust design, durable construction, and water-resistant components. The auto-switching 120-277 VAC power supply is completely sealed for mounting in wet locations. In addition, the UV lamp cables incorporate a waterproof connector design with a 6' lead to allow safe routing of cables within the air handler. The power supply is available with an optional 120 VAC plug.
Kele Description
AHU 120-277 VAC, GERMICIDAL UV LIGHT DUAL 1YR LAMP
Manufacturer
Fresh-Aire UV
Related Documents
3rd Party Test Results
