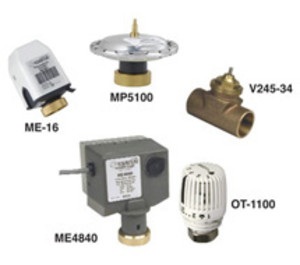

AV-6312 | Spartan Peripheral Devices | Control Valves

Size: 1/2", 3/4", 1"

Cv Range: 0.15 to 9.0

Connections: NPT, sweat, union

Stroke: 2-way valves: 0.16"(4.0 mm); 3-way valves: 0.11"(2.8 mm)

Life Expectancy: 1.5 million cycles, 3 million full strokes

Body Pattern: 2-way, 3-way diverting (mixing OK if pressure drop <5 psid)

Leakage Class: ANSI Class III (0.1%)

Body Rating: ANSI 250 (400 psi @ 150°F, 250 psi @ 250°F), PN16

Maximum Closeoff Pressure: OT-11, -21, -51: 30 psid (207 kPa); all others 45 psid (311 kPa); EB cartridges 100 psid (689 kPa)

Materials Of Construction: Low zinc bronze valve body alloy C84400, stainless steel stem and spring, integral bronze seat, EPDM/brass disc/plunger, double EPDM o-rings

Media Compatibility: Hot and chilled water, up to 50% glycol; 15 psig (103 kPa) steam (1" valve not rated for steam)

Media Temperature Range: 250°F (120°C) maximum media temperature

Supply Voltage:

ME-16, -17: 24 VAC/DC; 50/60 Hz, 230 VAC; 50/60 Hz

ME-16, -17: 24 VAC +20%, -10% @ 2 VA, 50/60 Hz, 24 VDC +20%, -10% @ 85 mA:

ME-4430, -4530: 24 VAC 10% @ 8 VA, 50/60 Hz:

ME-4431, -4531: 110 VAC, 50/60 Hz:

ME-46, -47, -48, -49: 24 VAC +10%, -5% @ 9 VA, 50/60 Hz:

ME-41, -42, -43: 24 VAC +10%, -5% @ 1 VA, 50/60 Hz:

Signal Input:

OT-11, -21, -51: thermostatic, modulating, temperature up = stem down

MP-5100: pneumatic, SR, 3-6 psi modulating or 2-position:

MP-5300: pneumatic, SR, 7-11 psi modulating or 2-position:

ME-16, -17: 2-position, SR, two-wire, wax technology, can be pulsed:

ME-44, -45: 2-position, SR two-wire:

ME-4640: floating, SR:

ME-4740: PWM, SR, 0.2 to 5 second pulse, 5 seconds full stroke:

ME-48, -49: proportional, SR, 2-10/10-2 VDC or 4-20 mA:

ME-4140: floating, NSR, triac or low energy gold contacts:

ME-4240: PWM, NSR:

ME-4340: proportional, NSR, 2-10 VDC:

Input Impedance:

ME-46, -47: 2 k?; ME-48, -49: 200 k?; ME-41, -42: 2 k?; ME-4340: 200 k?

Wiring:

ME-16, -17: 40" (100 cm) leads; ME-44, -45: 4" (10 cm) leads; ME-46, -47, -48, -49: 32" plenum-rated cable; ME-41, -42, -43: 32" plenum-rated cable

Action:Cartridges spring return valve stem up; valve body designs are either stem-up-to-open (SUTO) or stem-up-to-close (SUTC); spring return actuators available in fail-stem-up or fail-stem-down

Actuator Compatibility: All actuators: compatible with all valve bodies (exception: V222 valves use MP actuators only)

Actuator Mounting: Knurled mounting ring, hand tighten

Air Connections: Brass barbs for 5/32" or 1/4" OD flexible tubing (MP actuators, maximum 60 psig)

Dimensions:

OT-11, -21, -51: 3.4"H x 2.4" Dia. (8.6 x 6.0 cm)

MP-51, -53: 2.5"H x 3.1" Dia. (6.4 x 7.8 cm):

ME-16, -17: 3.1"H x 1.8"W x 1.8"D (7.9 x 4.6 x 4.6 cm):

ME-44, -45: 3.5"H x 2.8"W x 2.5"D (8.9 x 7.1 x 6.3 cm):

ME-46, -47, -48, -49: 3.5"H x 3.0"W x 3.5"D (8.9 x 7.6 x 8.9 cm):

ME-41, -42, -43: 3.1"H x 2.5"W x 3.3"D (7.9 x 6.4 x 8.5 cm):

Drive Time:

OT-11, -21, -51: variable; MP-51, -53: variable; ME-16, -17: <5 minutes; ME-44, -45: 10 seconds; ME-46, -47, -48, -49: 60 seconds drive, 25 seconds spring; ME-41, -42: 90 seconds; ME-4340: 60 seconds

Setpoint Range: OT-11, -21, -51: 40° to 85°F (4° to 29°C)

Feedback: ME-46, -47, -48, -49: 1-5 VDC, 100 k? impedance; ME-41, -42, -43: 1-5 VDC, 33 k? impedance:

Manual Override: ME-16, -17 actuators only

Operating Temperature:

OT-11, -21, -51: 40° to 85°F (4° to 29°C)

MP-51, -53: 41° to 122°F (5° to 50°C):

ME-16, -17: 46° to 122°F (8° to 50°C):

ME-44, -45: 41° to 122°F (5° to 50°C):

ME-46, -47, -48, -49: 32° to 122°F (0° to 50°C):

ME-41, -42, -43: 40° to 122°F (5° to 50°C):

Enclosure Rating:NEMA 1 (IP20)

Weight: V222-12, -34: 1.5 lb (0.68 Kg); V241-12: 0.60 lb (0.27 Kg); V241-34: 1.0 lb (0.45 Kg); V243-12: 0.55 lb (0.25 Kg); V243-34: 0.75 lb (0.34 Kg); V243-10: 2.1 lb (0.95 Kg); V245-12: 0.50 lb (0.23 Kg); V245-34: 0.70 lb (0.32 Kg); V320-12: 0.95 lb (0.43 Kg); V320-34: 1.0 lb (0.45 Kg); V345-10: 2.1 lb (0.95 Kg); V325-12: 0.60 lb (0.27 Kg); V325-34: 0.80 lb (0.35 Kg); OT-1100: 0.30 lb (0.14 Kg); MP-51, -53: .40 lb (.18 kg); ME-16, -17: 0.30 lb (0.14 Kg); ME-44, -45: 0.75 lb (0.34 Kg); ME-46, -47, -48, -49: 0.95 lb (0.43 Kg); ME-41, -42: 0.55 lb (0.25 Kg):

Approvals: CE

Warranty: Valves: 5 years; Actuators: 2 years
