VT2212 | Schneider Electric Buildings | Control Valves

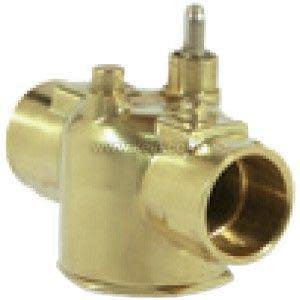

VB: 1/2 in, 2W, Zone, SWT, BR, 2.5 cv, Erie PopTop, No Steam

Brand:Schneider Electric Buildings

MPN:VT2212

SKU:VT2212

List Price:

$68.00

Today's Price:

$35.36

56 in stock

product specifications

Connection

Sweat

Cv

2.5 CV

Type

Valve Only

Pattern

2-way

Trim Material

Brass

Size

1/2 in

Control Signal

Two Position

product series specifications

Size: 1/2", 3/4", 1"

Cv Range: 1.0 to 8.0

Connections: FNPT, Sweat, or inverted flare (3/4" only)

Flow Characteristic: Quick Opening

Leakage Rating: ANSI Class IV (0.01% of rated capacity)

Maximum Closeoff Pressure:

Cv 1.0-1.5: 60 psid (414 kPa) AG actuator, 75 psid (517 kPa) AH actuator

Cv 2.5-3.0: 40 psid (276 kPa) AG actuator, 50 psid (345 kPa) AH actuator

Cv 3.5-4.0: 25 psid (172 kPa) AG actuator, 30 psid (207 kPa) AH actuator

Cv 5.0: 20 psid (137 kPa) AG actuator, 25 psid (172 kPa) AH actuator

Cv 7.5-8.0: 17 psid (117 kPa) AG actuator, 20 psid (137 kPa) AH actuator

Maximum Pressure Rating: 300 psig (2067 kPa)

Materials Of Construction: Brass valve body and seat, nickel-plated stem, BUNA N paddle; stainless steel base plate and aluminum cover on actuator

Media Compatibility: Hot or chilled water; 50% or less ethylene glycol; 15 psig steam

Media Temperature Range: 32° to 200°F (0° to 93°C) with AG actuator; up to 250°F (121°C) with AH actuator

Supply Voltage: 24 VAC ±10% @ 7 VA; 120 VAC ±10%, 50/60 Hz; 208-277V models also available

Control Signal: Two-position, two-wire

Wiring: 18" (45.2 cm) leads

Action: Two-way valves: N.O./N.C. determined by choice of actuator; three-way valves: N.C. actuator only

Actuator Compatibility: AG (general purpose) general closeoff (GCO) or AH (high performance) high closeoff (HCO) type actuators only

Actuator Mounting: Poptop®

Auxiliary Contacts: N.O. contacts, 24-240 VAC, 101mA min to 5A max; 9-30 VDC @ 100 mA max

Specification Drive Time: 25 seconds maximum @ 60 Hz

Manual Override: N.C. actuators only

Spring Return Time: 9 seconds maximum

Operating Temperature: AG actuator: maximum ambient 104°F (40°C); AH actuator: maximum ambient 169°F (77°C)

Weight: Valve bodies: <1.4 lb (0.64 Kg); Actuators: 1.0 lb (0.45 Kg)

Warranty: 2 years

product series features

  • Two- or three-way mixing/diverting body patterns
  • Removable and replaceable actuator
  • NPT, sweat, or inverted flare connections
  • 2-position spring return control

more information & related documents

Series Description

The VT Series Two-Position PopTop™ zone valves offer a wide range of models to handle chilled water, hot water, and 15 psig (103 kPa) steam applications. Each PopTop zone valve features a removable actuator to aid in both installation and service. The 2-way zone valve and 3-way zone valve are available in many body patterns and with normally open or normally closed actuators. This wide range of zone valves meets a variety of needs for Building Automation Systems, BAS, and HVAC applications.

Kele Description

2-WAY/1/2IN/SWEAT/ 2POS/CV=2.5/WATER

Manufacturer

Schneider Electric Buildings
