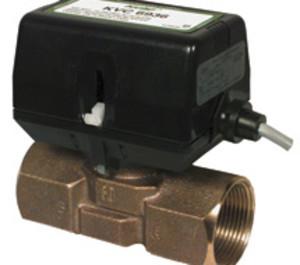

* product series image displayed

VCZZ1400 | Resideo | Control Valves

KVC CARTRIDGE 2-WAY CV=2.9

Brand:Resideo

MPN:VCZZ1400

SKU:VCZZ1400

List Price:

$-.--

Today's Price:

$-.--

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

2.9 CV

Type

Accessory

Pattern

2-way

product series specifications

Size: 1/2", 3/4", 1", 1-1/4"

Cv: 0.7, 4.7, 0.7, 2.9, 4.7, 8.7

Connections: FNPT

Body Pattern: 2-Way, 3-Way

Flow Characteristic: Linear

Leakage Rating: ANSI Class IV (0.01% of Rated Capacity)

Maximum Closeoff Pressure: 60 psid (414 kPa)

Pressure Rating: 300 psig (2069 kPa)

Materials Of Construction: Bronze valve body, stainless steel stem, Ryton® and Noryl® trim, Noryl® and Ryton® plastic actuator housing

Media Compatibility: Hot water, chilled water

Media Temperature Range: 34° to 203°F (1° to 95°C)

Supply Voltage: 24 VAC @ 6 VA, 50/60 Hz

Control Signal: Two-position, floating, or proportional

Wiring: 39" (99 cm) cable, 20 AWG conductors

Action: 2-way: Stem spring up on actuator removal, stem up to close (bi-directional flow)

3-way: Stem spring up on actuator removal, stem up closes port A, stem down closes port B

Actuator Mounting: Twist-lock mount with latch

Manual Override: Combination override lever and position indicator

Stroke Time: KVCx114: 6 seconds; KVCx93x: 120 seconds

Weight: KVCxxx4: 0.9 lb (0.39 Kg); KVCxxx6: 1.1 lb (0.50 Kg)

Warranty: 1 year

product series features

Three-way mixing and diverting in one body
Two-way bi-directional flow for simple installation
Linear flow characteristics
Easily replaceable seat cartridge
Twist-on low power/long life actuator
Manual override
Fail-in-place or power-fail return actuator models
Selectable power fail return direction models

more information & related documents

Series Description

The Kele KVC Series includes two- and three-way, hot and chilled water control valves and fail-in-place or power-fail return electric actuators. The unique cartridge design enables the valve to be piped mixing or diverting for the three-way valve, and either flow direction for the two-way valve. Specially designed for Building Automation Systems, BAS, the actuator uses a unique twist-off mount for easy installation or servicing. These control valves are available with two-position, floating, or proportional control signals.

Kele Description

KVC CARTRIDGE 2-WAY CV=2.9

Manufacturer

Resideo
