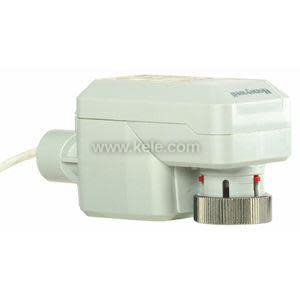

M7410F1000 | Honeywell | Control Valves

Proportional Actuator For V5800 0-10V4-20Ma

Brand:Honeywell

MPN:M7410F1000

SKU:M7410F1000

List Price:

$498.00

Today's Price:

$258.96

product datasheet

catalog page

62 in stock

product specifications

Connection

Wire Leads

Fail-Safe

Non-Spring Return

Power Supply

24 V

Torque

40.5 lbf

Type

Actuator Only

Supply Va

7 VA

Control Signal

Analog

Actuator Type

Electric

Supply Voltage (Nominal)

24 VAC

product series specifications

Connections: FNPT

Stroke: 1/4"

Body Pattern: 2-Way, 3-Way mixing

Flow Characteristic: Equal Percentage (two-way), Linear (three-way)

Pressure Rating: 230 psig (1586 kPa)

Materials Of Construction: Brass valve body and trim, stainless steel stem

Media Compatibility: Hot or chilled water, 50% maximum glycol

Media Temperature Range: 36° to 230°F (2° to 110°C)

Supply Voltage:

Control Signal: Tri-state (floating) (M6410), 0/2-10 VDC or 4-20 mA (M7410)

Conduit Connection: 1/2" FNPT hub

Wiring: 4.9' (1.5 m) cable

Action: Stem up on actuator removal, valve open (B-AB open for 3-way)

Stroke Time: 125 seconds @ 60 Hz, 150 seconds @ 50 Hz

Operating Temperature: 32° to 140°F (0° to 60°C)

Enclosure Rating: UL Listed for plenum use, UL94-5V

Warranty: 1 year

product series features

Very small Cv's from 0.19 up to 4.9
High quality plug-seat design for precise control
Very quiet operation
Floating or proportional control
Non-spring return actuators

more information & related documents

Series Description

The V5860 Series modulating zone valves are designed specifically for use in small hot water or chilled water applications. Ideal for Building Automation Systems, BAS, and HVAC applications, the 2-way modulating zone valve and 3-way modulating zone valve are available with configurations in 1/2 in. and 3/4 in. FNPT. The wide selection of CV's offer precise equal percentage control, which is ideal for fan coils, baseboards, and small AHUs. The field-mounted, non-spring return screw-on actuators offer easy installation and modulating control using floating or proportional signals.

Kele Description

PROP ACT FOR V5800 0-10V4-20MA

Manufacturer

Honeywell
