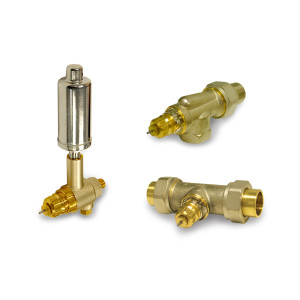

* product series image displayed

013G8562 | Danfoss | Control Valves

WALL MT DIAL/SENSOR 6FT CAP

Brand:Danfoss

MPN:013G8562

SKU:013G8562

List Price:

$299.00

Today's Price:

$155.48

5 in stock

product specifications

Type

Accessory

product series specifications

Cv Range: 1.6 to 2.8

Pipe Size Range: 1/2" to 1-1/4"

Maximum Pressure Rating: Test pressure 232 psig (1600 kPa)

Maximum Pressure: Water 145 psig (1000 kPa), steam 15 psig (103 kPa)

Media Compatibility: Hot water and low pressure steam

Media Temperature Range: Maximum 250°F (121°C) for water or steam

Setpoint Range: Adjustable 45 to 86°F (7 to 30°C)

Operating Temperature: Maximum sensor temperature 140°F (60°C)

Connections: FPT x MPT union tailpiece or double solder union (1/2" and 3/4" straight bodies only)

Body Pattern: 2-way straight, angle or side-mount angle

Approvals: ASHRAE/ANSI Standard 102-1983

product series features

Thermal Actuators provide fast acting modulation for quick response and excellent comfort control
24 VAC actuators provide slow, smooth control to eliminate water hammer
Actuators are equipped with snap-action mounting for fast installation and removal without tools
Valves packing gland assembly may be replaced while system is in operation to save service time
Plastic cap supplied to protect the valve pushpin can provide manual control of the valve during installation for easy startup

more information & related documents

Series Description

Danfoss RA2000 Series thermostatic radiator valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors. Valve bodies and actuators are packaged separately to allow the installer to select a suitable combination for each application.

Kele Description

WALL MT DIAL/SENSOR 6FT CAP

Manufacturer

Danfoss
