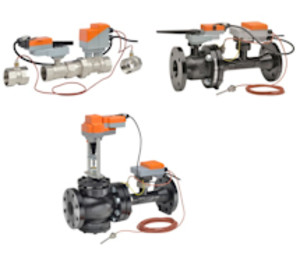

EV500SU-495-250+GRX24-EV | Belimo | Control Valves
Pressure Independent Valve, 2-Way, 5 in, Equal Percentage Flow, ANSI Class 250, Flange Connection, 495 gpm, 310 psi Close-Off Pressure, Stainless Steel Trim, Electric Actuator,24 V, Non-Spring Return, Fail Normally Open, Modulating, 2-10 VDC BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud Communication, includes 18 GA Plenum Cable with 1/2 in NPT Conduit Connector and RJ45 Socket for Ethernet
Brand:Belimo
MPN:EV500SU-495-250+GRX24-EV
SKU:EV500SU-495-250+GRX24-EV
List Price:
$27,970.00
Today's Price:
$14,544.40
Log in for customized pricingproduct specifications
Connection
Flange
Fail-Safe
Spring Return
Type
Assembly
Valve Type
Energy
Pattern
2-way
Trim Material
Stainless Steel
Size
5 in
Control Signal
Analog
GPM
495 GPM
Actuator Type
Electric
Supply Voltage (Nominal)
24 VAC
product series specifications
Size: 2-1/2", 3", 4", 5", 6"
GPM: See Datasheet
Body Pattern: Two-way
Flow Characteristic: Equal percentage / linear
Leakage Rating: 0% (ANSI 125) ANSI Class IV (NSI 250)
Maximum Closeoff Pressure: See Datasheet for Models and Actuators
Materials Of Construction:
ANSI 125 Body; Valve: cast iron - GG25; Sensor housing: ductile iron - GGG50; Ball stainless steel; Seat: PTFE; Characterizing disc: stainless steel; Packing: 2 EPDM O-rings, lubricated; ANSI 250 Body: cast iron; Stem: stainless steel; Sensor housing: ductile iron GGG50; Seat and Plug: stainless steel; Packing: NLP (no lip packing)
Compatible Actuators:
Non-Spring Return LR, NR, GR, AR and Electronic
Fail-Safe Actuators AKR and GKR
Media Compatibility: chilled or hot water, 60% glycol max (open loop/steam not allowed)
Media Temperature Range: 14°F to 250°F (-10°C to +120°C)
Body Pressure Rating:
P6 ANSI 125 according to ANSI 125, standard class B
P6 ANSI 250 according to ANSI 250, standard class B
Warranty: 5 years
product series features
- The Energy Valve measures energy, controls power, and manages delta T.
- Measures Energy: using its built-in electronic flow sensor and
- supply and return temperature sensors.
- Controls Power: with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations.
- Manages Delta T: The Energy Valve solves Low Delta T Syndrome.
- In addition, it reduces pumping costs while increasing chiller/boiler efficiency by optimizing coil efficiency.
more information & related documents
Series Description
The Belimo EV Energy Valve Series is an energy-metering, pressure independent control valve that optimizes, documents and proves water coil performance. The Energy Valve measures energy using its built-in electronic flow sensor and supply and return temperature sensors. It also controls power with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations. Finally, it manages delta T by reducing pumping costs while increasing chiller/boiler efficiency by optimizing coil efficiency.
Kele Description
PRESSURE IND VLV ASMBLY, 2-WAY, 5 IN, ANSI CLASS 250, FLANGE, 495 GPM, 24V, NSR, MOD, 2-10VDC
Manufacturer
Belimo
Related Documents
EV Belimo Energy Valve Brochure EV Belimo Energy Valve Programmable Set Up Form EV Belimo Pressure Independent Valve Flow Verification and Commissioning EV Datasheet EV Default Settings EV Energy Valve Bacnet Protocol EV Energy Valve Temperature Sensor and Fitting Installation Guide EV Energy Valve Weather Shield Datasheet EV Field Study EV Installation Guide EV Technical Documentation
