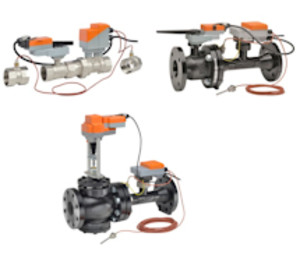

* product series image displayed

EV300SU-180-250+ARX24-EV | Belimo | Control Valves

Pressure Independent Valve, 2-Way, 3 in, Equal Percentage Flow, ANSI Class 250, Flange Connection, 180 gpm, 310 psi Close-Off Pressure, Stainless Steel Trim, Electric Actuator,24 V, Non-Spring Return, Fail Normally Open, Modulating, 2-10 VDC BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud Communicationincludes 18 GA Plenum Cable with 1/2 in NPT Conduit Connector and RJ45 Socket for Ethernet

Brand:Belimo

MPN:EV300SU-180-250+ARX24-EV

SKU:EV300SU-180-250+ARX24-EV

List Price:

$-.--

Today's Price:

$-.--

How To: Update the Energy Valve 4 Firmware

Lead time of 0 days. Chat with Kele experts now

product specifications

Connection

Flange

Fail-Safe

Non-Spring Return

Type

Assembly

Valve Type

Energy

Pattern

2-way

Trim Material

Stainless Steel

Size

3 in

Control Signal

Analog

GPM

180 GPM

Actuator Type

Electric

Supply Voltage (Nominal)

24 VAC

product series specifications

Size: 2-1/2", 3", 4", 5", 6"

GPM: See Datasheet

Body Pattern: Two-way

Flow Characteristic: Equal percentage / linear

Leakage Rating: 0% (ANSI 125) ANSI Class IV (NSI 250)

Maximum Closeoff Pressure: See Datasheet for Models and Actuators

Materials Of Construction:

ANSI 125 Body; Valve: cast iron - GG25; Sensor housing: ductile iron - GGG50; Ball stainless steel; Seat: PTFE; Characterizing disc: stainless steel; Packing: 2 EPDM O-rings, lubricated; ANSI 250 Body: cast iron; Stem: stainless steel; Sensor housing: ductile iron GGG50; Seat and Plug: stainless steel; Packing: NLP (no lip packing)

Compatible Actuators:

Non-Spring Return LR, NR, GR, AR and Electronic

Fail-Safe Actuators AKR and GKR

Media Compatibility: chilled or hot water, 60% glycol max (open loop/steam not allowed)

Media Temperature Range: 14°F to 250°F (-10°C to +120°C)

Body Pressure Rating:

P6 ANSI 125 according to ANSI 125, standard class B

P6 ANSI 250 according to ANSI 250, standard class B

Warranty: 5 years

product series features

The Energy Valve measures energy, controls power, and manages delta T.
Measures Energy: using its built-in electronic flow sensor and
supply and return temperature sensors.
Controls Power: with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations.
Manages Delta T: The Energy Valve solves Low Delta T Syndrome.
In addition, it reduces pumping costs while increasing chiller/boiler efficiency by optimizing coil efficiency.

more information & related documents

Series Description

The Belimo EV Energy Valve Series is an energy-metering, pressure independent control valve that optimizes, documents and proves water coil performance. The Energy Valve measures energy using its built-in electronic flow sensor and supply and return temperature sensors. It also controls power with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations. Finally, it manages delta T by reducing pumping costs while increasing chiller/boiler efficiency by optimizing coil efficiency.

Kele Description

PRESSURE IND VLV ASMBLY, 2-WAY, 3 IN, ANSI CLASS 250, FLANGE, 180 GPM, 24V, NSR, MOD, 2-10VDC
