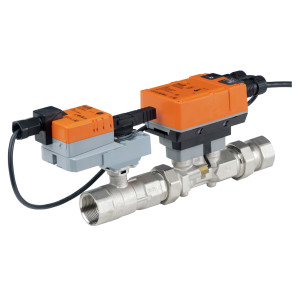

EP150+NRX-E | Belimo | Control Valves
Pressure Independent Valve, 2-Way, 1-1/2 in, Equal Percentage Flow, Female NPT Threaded Connection, 44 gpm, 200 psi Close-Off Pressure, Stainless Steel Trim, Electric Actuator,24 V, Non-Spring Return, Modulating BACnet MS/TP, Modbus RTU, MP-Bus, includes 3 ft of 18 GA Plenum Cable with 1/2 in Conduit Connection
Brand:Belimo
MPN:EP150+NRX-E
SKU:EP150+NRX-E
product specifications
Connection
Threaded
Fail-Safe
Non Fail-Safe
Torque
90 in-lb
Type
Assembly
Pattern
2-way
Trim Material
Stainless Steel
Size
1-1/2 in
Control Signal
Analog, Communicating
GPM
44
Actuator Type
Electric
Supply Voltage (Nominal)
24 VAC/VDC
product series specifications
Fluid: chilled or hot water, up to 60% glycol max
Body Pattern: 2-Way
Size: 1/2 - 6 in
Flow Range: 1.65 - 713 GPM
Pressure Rating:
Blank = ANSI 125
-250 = ANSI 250
Power Supply: 24 VAC
product series features
- Provides constant flow regardless of pressure variations in the system.
- Maximizes chiller differential pressure, preventing energizing additional chillers due to low Delta T.
- Simplified valve sizing and selection, no Cv calculations required.
more information & related documents
Series Description
The Belimo ePIV Electronic Pressure Independent Control Valve Series incorporates a flow meter and a 2-way control valve. The actuator has a powerful algorithm that modulates the control valve to maintain theflow regardless of variations in system differential pressure. In addition, the ePIV provides feedback as a 0-10 VDC or 2-10 VDC to the building management system. Depending on the system requirement, this feedback can be configured to be either True Flow or Valve Position using the PC-Tool software.
Kele Description
PRESSURE INDEPENDENT VLV ASMBLY, 2-WAY, 1-1/2 IN, (F)NPT, 44 GPM, 24V, NSR, MODULATING
Manufacturer
Belimo
ePIV Series Complete Technical Document
