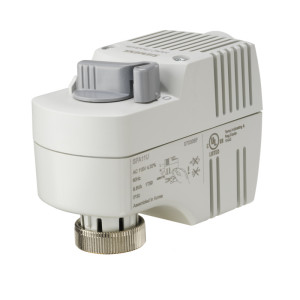

SFP71U | Siemens Industry | Control Valves

Zone Valve Electronic Actuator, 24 Vac, 2-Position, NO, SR.

Brand:Siemens Industry

MPN:SFP71U

SKU:SFP71U

List Price:

$192.00

Today's Price:

$99.84

3 in stock

product specifications

Connection

Terminals

Fail-Safe

Spring Return

Output

0 - 5 VDC

Type

Current Sensor

Flow Pattern

2-Way or 3-Way

Current Range

0 - 10 A

Analog Output

0 - 5 VDC

Window Size

0.5 in

Supply Voltage (Nominal)

24 VAC

product series specifications

Size: 1/2", 3/4", 1"

Cv Range: 1, 2.5, 4, 4.1, 7

Stroke: 0.1" (2.5 mm)

Body Pattern: 2-way, 3-way diverting

Flow Characteristic: Linear

Leakage Rating: ANSI Class III (0.1% of rated capacity)

Body Rating: ANSI Class 125

Media Temperature Range: 34° to 230°F (1° to 110°C)

Supply Voltage: 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz

Supply VA: Two-position actuators: 9.8 VA; three-position (floating) actuators: 0.8 VA; proportional (0-10 VDC) actuators: 2.5 VA

Signal Input: Two-position, three-position (floating), and 0-10 VDC proportional

Action: Two-way valves are stem-up-to-open; three-way valves are diverting; normal position is determined by choice of actuator

Stroke Time: Two-position actuators: 35 seconds; three-position (floating) actuators: 150 seconds; proportional (0-10 VDC) actuators: 34 seconds

Operating Temperature: 41° to 122°F (5° to 50°C)

Operating Humidity: 0 to 90% RH non-condensing

Enclosure Rating: NEMA 1 (indoor only)

Weight: Two-position actuators: 1.2 lb (0.54 Kg); three-position (floating) actuators: 0.5 lb (0.25 Kg); proportional (0-10 VDC) actuators: 0.5 lb (0.25 Kg)

Approvals: CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL FIle #E220114,

Warranty: 2 years

product series features

  • Direct-coupled universal bonnet
  • Direct-coupled installation without tools
  • Manual override with 3mm hex wrench
  • Visual position indication

more information & related documents

Series Description

The Siemens 599 Series zone valves work with any SFA/P Series or SSA/P Series electric actuator. The actuators provide two-position, three-position, or 0-10 VDC control. Typical applications include hot or chilled water for zones with radiators, floor heating via manifolds, fan coil units, cooling ceilings, wall-mounted boilers, and VAV applications.

Kele Description

NO,2P,24VAC

Manufacturer

Siemens Industry
