MS51-7203 | Schneider Electric Buildings | Control Valves

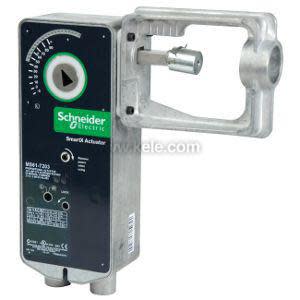

Act (MS51-7203): Elec, Prop, SR, 24 VAC/VDC, App, 220 lbf, Linear, N2

Brand:Schneider Electric Buildings

MPN:MS51-7203

SKU:MS51-7203

List Price:

$1,552.00

Today's Price:

$807.04

(login for better pricing)

Lead time of > 15 days. See alternatives below orChat with Kele experts now

product datasheet

catalog page

product specifications

Connection

NPT

Fail-Safe

Spring Return

Torque

220 lbf

Type

Actuator Only

Pattern

2-way or 3-way

Control Signal

Analog

Actuator Type

Electric

Supply Voltage (Nominal)

24 VAC/VDC

product series specifications

Supply Voltage: Mx(41, 51, 61) 24V (AC/DC)

Supply Voltage: MF-22303 24 VAC, 1.5 VA

Input Impedance: MS41-7153/AV-609-1 80 kO @ 0/2-10 VDC; 500O @ 4-20 mA

Conduit Connection: 1/2" FNPT

Wiring: MF-22303: 48" (122 cm) 18 AWG plenum cable rated for UL; Mx51-7103: 36" (91 cm) plenum cable; Mxxx-7203: 36" (91 cm) appliance cable; Mx41-7153: 36" (91 cm) cable, 18 AWG

Enclosure Rating: NEMA 1 (IP31)

Feedback: MF51, MS51, MS41: 2-10 VDC

Manual Override: Crank

Operating Temperature: MF-22303 40° to 281°F (4° to 138°C); Mx51-7103, Mx41: -22° to 140°F (-30° to 60°C); Mx51-7203, Mx61-7203: 0° to 140°F (-18° to 60°C)

Operating Humidity: 5% to 95% RH non-condensing

Weight: MF-22303 1.5 lb (.68 kg); Mxxx-7102, -7203 4.3 lb (1.9 kg); Mx41-7153/AV-609 7.5 lb (3.4 kg)

Approvals: MF-22303: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC

Mx51, Mx61: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC

Mx41-7153: UL, CE, cUL

Warranty: MF-22303: 2 years; All others 5 years

product series features

Direct-mount, integral linkage (SR models)
Wide selection of control signal inputs
Rugged design, reliable performance
Spring or non-spring return models

more information & related documents

Series Description

The Schneider Electric SmartX Series linear globe valve actuators are designed to mount directly onto VB-7000 and VB-8000 Series 2-way globe valves or 3-way globe valves. Each globe valve actuator features integral linkage to provide linear travel. These actuators are available in a wide selection of spring and non-spring return models. Schneider Electric SmartX Series linear globe valve actuators are intended for use in Building Automation Systems, BAS, and HVAC applications.

Kele Description

PROP. 2-10 VDC, SR, 220 LBF, 24 VAC/VDC ACT

Manufacturer

Schneider Electric Buildings
