MPR-5610 | Schneider Electric Buildings | Control Valves

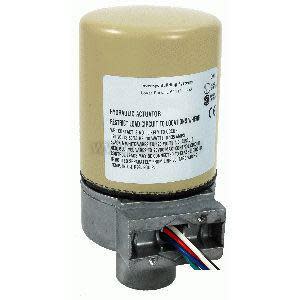

Act (MPR-5610): Elec/Hyd, Prop, 4-20 mAdc, SR, 120 VAC, App, 15 in-lb, Linear, N1, Erie

Brand:Schneider Electric Buildings

MPN:MPR-5610

SKU:MPR-5610

List Price:

$1,251.00

Today's Price:

$650.52

product datasheet

Lead time of > 15 days. Chat with Kele experts now

product specifications

Fail-Safe

Spring Return

Torque

15 in-lb

Control Signal

Analog

Supply Voltage (Nominal)

120 VAC

product series specifications

Input Impedance: 82.5 O for 4-20 mA input

Wiring: Color-coded 4 ft. (1.2 m) leads

Control Circuit: MPR-561X and -563X Series: Two-wire; MPR-571X and -573X Series: Three-wire

Operating Temperature:Damper -20 - 140°F (-29 - 60°C); Valve: Refer to Datasheet Table

Operating Humidity: 5 to 95% RH, non-condensing

Enclosure Rating: NEMA Type 1

Approvals: UL873, CSA

product series features

Spring return.
24 and 120 Vac models available.
Die cast lower housing with 1/2 in. conduit opening and painted steel upper housing.
Hydraulic actuator with oil-immersed motor, transducer, and pump.
Proportional actuators controlled by a variable mAdc input signal.
82.5 Ohm input impedance.
Adjustable actuator startpoint.

more information & related documents

Series Description

The Schneider Electric MPR-5600 Series actuators provide electronic proportional control of valves requiring return to normal position upon power interruption. They are compatible with controllers generating 4-20 mA input signals.

Kele Description

120 VAC 50/60 HZ VALVE ACTUATOR

Manufacturer

Schneider Electric Buildings
