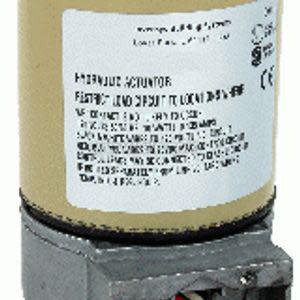

MP-5210 | Schneider Electric Buildings | Control Valves
Act (MP-5210): Elec/Hyd, Prop, 6-9 VDC, SR, 120 VAC, App, 1.86 in-lb, Linear, N1, Erie
Brand:Schneider Electric Buildings
MPN:MP-5210
SKU:MP-5210
List Price:
$1,016.00
Today's Price:
$528.32
Log in for customized pricingproduct specifications
Fail-Safe
Spring Return
Torque
1.86 in-lb
Type
Actuator Only
Pattern
2-way or 3-way
Size
1/2 to 2 in
Control Signal
Two Position
Actuator Type
Electronic Hydraulic
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage: Mx(41, 51, 61) 24V (AC/DC)
Supply Voltage: MF-22303 24 VAC, 1.5 VA
Input Impedance: MS41-7153/AV-609-1 80 kO @ 0/2-10 VDC; 500O @ 4-20 mA
Conduit Connection: 1/2" FNPT
Wiring: MF-22303: 48" (122 cm) 18 AWG plenum cable rated for UL; Mx51-7103: 36" (91 cm) plenum cable; Mxxx-7203: 36" (91 cm) appliance cable; Mx41-7153: 36" (91 cm) cable, 18 AWG
Enclosure Rating: NEMA 1 (IP31)
Feedback: MF51, MS51, MS41: 2-10 VDC
Manual Override: Crank
Operating Temperature: MF-22303 40° to 281°F (4° to 138°C); Mx51-7103, Mx41: -22° to 140°F (-30° to 60°C); Mx51-7203, Mx61-7203: 0° to 140°F (-18° to 60°C)
Operating Humidity: 5% to 95% RH non-condensing
Weight: MF-22303 1.5 lb (.68 kg); Mxxx-7102, -7203 4.3 lb (1.9 kg); Mx41-7153/AV-609 7.5 lb (3.4 kg)
Approvals: MF-22303: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC
Mx51, Mx61: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC
Mx41-7153: UL, CE, cUL
Warranty: MF-22303: 2 years; All others 5 years
product series features
- Direct-mount, integral linkage (SR models)
- Wide selection of control signal inputs
- Rugged design, reliable performance
- Spring or non-spring return models
more information & related documents
Series Description
The Schneider Electric SmartX Series linear globe valve actuators are designed to mount directly onto VB-7000 and VB-8000 Series 2-way globe valves or 3-way globe valves. Each globe valve actuator features integral linkage to provide linear travel. These actuators are available in a wide selection of spring and non-spring return models. Schneider Electric SmartX Series linear globe valve actuators are intended for use in Building Automation Systems, BAS, and HVAC applications.
Kele Description
120V 50/60 HZ ACTUATOR
Manufacturer
Schneider Electric Buildings
Related Documents
DuraDrive Product Guide
