MF51-7103-100 | Schneider Electric Buildings | Control Valves
FLOATING, SR, 105 LBF, 24 VAC/VDC ACT
Brand:Schneider Electric Buildings
MPN:MF51-7103-100
SKU:MF51-7103-100
List Price:
$630.00
Today's Price:
$327.60
Log in for customized pricingproduct specifications
Connection
NPT
Fail-Safe
Spring Return
Torque
105 Ibf
Type
Actuator Only
Pattern
2-way or 3-way
Size
1/2 to 2 in
Control Signal
Floating
Actuator Type
Electric
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
Supply Voltage: Mx(41, 51, 61) 24V (AC/DC)
Supply Voltage: MF-22303 24 VAC, 1.5 VA
Input Impedance: MS41-7153/AV-609-1 80 kO @ 0/2-10 VDC; 500O @ 4-20 mA
Conduit Connection: 1/2" FNPT
Wiring: MF-22303: 48" (122 cm) 18 AWG plenum cable rated for UL; Mx51-7103: 36" (91 cm) plenum cable; Mxxx-7203: 36" (91 cm) appliance cable; Mx41-7153: 36" (91 cm) cable, 18 AWG
Enclosure Rating: NEMA 1 (IP31)
Feedback: MF51, MS51, MS41: 2-10 VDC
Manual Override: Crank
Operating Temperature: MF-22303 40° to 281°F (4° to 138°C); Mx51-7103, Mx41: -22° to 140°F (-30° to 60°C); Mx51-7203, Mx61-7203: 0° to 140°F (-18° to 60°C)
Operating Humidity: 5% to 95% RH non-condensing
Weight: MF-22303 1.5 lb (.68 kg); Mxxx-7102, -7203 4.3 lb (1.9 kg); Mx41-7153/AV-609 7.5 lb (3.4 kg)
Approvals: MF-22303: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC
Mx51, Mx61: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC
Mx41-7153: UL, CE, cUL
Warranty: MF-22303: 2 years; All others 5 years
product series features
- Direct-mount, integral linkage (SR models)
- Wide selection of control signal inputs
- Rugged design, reliable performance
- Spring or non-spring return models
more information & related documents
Series Description
The Schneider Electric SmartX Series linear globe valve actuators are designed to mount directly onto VB-7000 and VB-8000 Series 2-way globe valves or 3-way globe valves. Each globe valve actuator features integral linkage to provide linear travel. These actuators are available in a wide selection of spring and non-spring return models. Schneider Electric SmartX Series linear globe valve actuators are intended for use in Building Automation Systems, BAS, and HVAC applications.
Kele Description

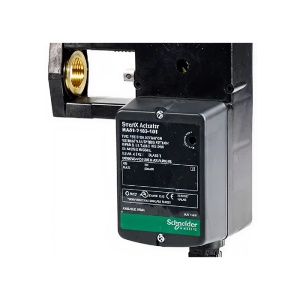

FLOATING, SR, 105 LBF, 24 VAC/VDC ACT
Manufacturer
Schneider Electric Buildings
Related Documents
DuraDrive Product Guide
