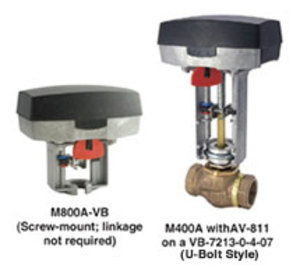

* product series image displayed

M800A-S2 | Schneider Electric Buildings | Control Valves

180 LBF, PROP/FLTG, NSR, 24VAC, AUX SW

Brand:Schneider Electric Buildings

MPN:M800A-S2

SKU:M800A-S2

List Price:

$1,007.00

Today's Price:

$523.64

Lead time of 14 days. Chat with Kele experts now

catalog page

product specifications

Fail-Safe

Non-Spring Return

Torque

179 lbf

Type

Actuator Only

Pattern

2-way or 3-way

Size

1/2 to 3/4 in

Control Signal

Floating, Analog, Two Position

Actuator Type

Electric

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 24 VAC ±10%, 50/60 Hz

Supply VA: M400: 6 VA; M800: 15 VA; M1500: 24 VA

Control Signal: Floating or Proportional 0/2-10 VDC or 4-20 mA

Motor: Brushless DC

Noise: 32 dBa maximum

Conduit Connection: Two knockouts, 7/8" (2.2 cm)

Wiring: Screw terminals

Feedback: 2-10 VDC

Auxiliary Switch: Two SPDT, 4A resistive @ 24 VAC (model specific)

Action: Non-spring return, direct or reverse DIP switch selectable

Force: M400: 90 lbf (400 N); M800: 180 lbf (800 N); M1500: 337 lbf (1500 N)

Stroke: 3/8" to 2" (.9 to 5.2 cm)

Stroke Time: Floating, 60 or 300 seconds; Proportional, 15 seconds (for 1/2" stroke)

Valve Mounting: U-Bolt or Screw Mount

AV-821 Used with U-Bolt version on current VB-7XXX valves

AV-822 Used with U-Bolt version on current VB-8XXX valves and older VB-9XXX valves

Manual Override: Yes

Operating Temperature: 14° to 122°F (-10° to 50°C) for chilled water applications; maximum temperature reduces to 90°F (32°C) when media temperature is 366°F (186°C)

Operating Humidity: 15% to 95% RH non-condensing

Enclosure Rating: NEMA 2 (IP54) if both conduit connectors used, otherwise NEMA 1 (IP40)

Dimensions:

Tall U-Bolt Style 9.5"H x 6.3"W x 4.6"D (24.2 x 16.0 x 11.7 cm)

Screw Mount 6.4"H x 6.3"W x 4.6"D (16.3 x 16.0 x 11.7 cm)

Weight: 3.9 lb (1.8 Kg)

Approvals: C-tick, CE

Warranty: 1 year

Specification

Note: Screw version actuators designed for VB-7XXX only.

product series features

Floating or proportional control in the same actuator
Proportional configuration 0-10, 2-10 VDC or 4-20 mA, 500 Ohm resistor included
Direct/Reverse action (switch selectable)
Configurable run time
Manual override
Electronic valve sequencing and flow characteristic (equal percentage or linear) selection
Torque overload protection (full stroke)
Easy auto zero and span

more information & related documents

Series Description

The Schneider Electric Forta Series globe valve actuator is a programmable linear actuator family for use with VB7000, VB8000 and VB9000 series two- and three-way valves. The actuators are easily configured for floating or proportional control, direct or reverse action, stroke timing and flow characteristics. An automatic input control signal setup allows for easy field installation onto existing Scheider Electric globe valves. The Forta actuator can also be purchased as part of a complete valve assembly for new applications/installations (order the VU Series).

Kele Description

180 LBF, PROP/FLTG, NSR, 24VAC, AUX SW

Manufacturer

Schneider Electric Buildings
