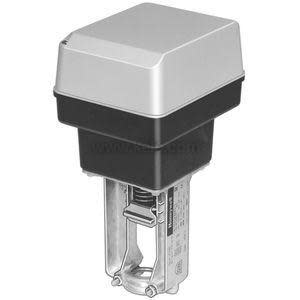

ML7425A3013 | Honeywell | Control Valves
24Vac Mod 2-10V Actuator/Fail Stem Down
Brand:Honeywell
MPN:ML7425A3013
SKU:ML7425A3013
List Price:
$1,639.00
Today's Price:
$852.28
Log in for customized pricingproduct specifications
Connection
Wire Leads
Fail-Safe
Spring Return
Power Supply
24 V
Torque
135 lbf
Type
Actuator Only
Supply Va
12 VA
Control Signal
Analog
Actuator Type
Electric
Supply Voltage (Nominal)
24 VAC
product series specifications
Life Expectancy: 50,000 full stroke cycles or 1,000,000 repositions (ML6984, ML7984)
Input Impedance: 100 kO for 2-10 VDC input, 500 O for 4-20 mA input (ML74xx); 20 kO for 2-10 VDC input, 237 O for 4-20 mA input (ML7984)
Noise: 55 dBA @ 3.3' (1m) for ML6984, ML7984 only, others not rated
Spring Return Time: 12 seconds, for ML6425, ML7425 only
Manual Override: Yes, on ML6420, ML7420, ML6421, ML7421 only
Operating Temperature: 14° to 122°F (-10° to 50°C) for ML64xx, ML74xx; 32° to 132°F (0° to 55°C) for ML6984, ML7984
Operating Humidity: 5% to 95% RH non-condensing for ML64xx, ML74xx; 15% to 95% RH non-condensing for ML6984, ML7984
Approvals: UL File #E4436 (except ML7984/ML6984 not UL), CE
Warranty: 1 year
more information & related documents
Series Description
The ML6420, ML6421, ML6984, ML7420, ML7421, and ML7984 are direct-mount, electric, non-spring return globe valve actuators. The actuators are designed for use on Honeywell V5011N/13N and VGF Series globe valves. The ML6425 and ML7425 are direct-mount, electric spring return. Each globe valve actuator can be ordered pre-assembled with a valve and be easily installed in the field; separate linkages are not required. These actuators are proven performers in Building Automation Systems, BAS, and HVAC applications.
Kele Description
24VAC MOD 2-10V ACT/FAIL STEM DOWN
Manufacturer
Honeywell
ML6425 ML7425 Product Data
