SGVL+LVKB24-SR | Belimo | Control Valves

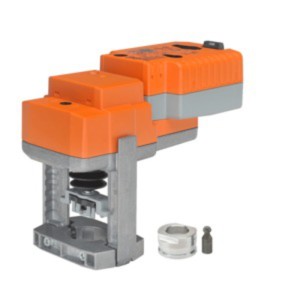

Globe Valve, Schneider Valve Linkage with LV and SV Series Actuators, 1/2 in - 2 in Valves, Electric Actuator,24 V, Spring Return, Modulating, 2-10 VDC 115 lbf Rated Force, .95 in Stroke, includes 3 ft of 18 GA Appliance Cable with 1/2 in NPT Conduit Connection
Brand:Belimo
MPN:SGVL+LVKB24-SR
SKU:SGVLLVKB24SR
List Price:
$1,199.00
Today's Price:
$623.48
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 2, IP54
Actuator Series
LVKB(X)
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Application Type
Retrofit
Electrical Connection
3 ft, 18 GA plenum rated cable with 1/2 in conduit connector protected NEMA 2 (IP54)
Fail-Safe
Spring Return
Feedback Output U
2 to 10 VDC
Fitting Actuator
LVKB24-SR
Fitting Valve
SGVL
Housing Material
Aluminum Die Cast and Plastic Casing
Humidity
5 to 95% RH non-condensing
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA
Linkage Series
SGVL
Manual Override
4mm Hex Crank (Shipped with Actuator)
Position Indication
stroke indicator on bracket
Power Consumption Holding
1.5 W
Power Consumption Running
2.5 W
Power Supply
24 VAC, 24 VDC
Power Supply Type
24V
Quality Standard
ISO 9001
Running Time
95 seconds
Service
chilled or hot water and steam
Servicing
maintenance free
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Torque
112 lbf
Transformer Sizing
6 VA (class 2 power source)
Type
Actuator Only
Unit of Measure
PC
Valve Company
Siebe (Belimo), Invensys, Barber Colman
Control Signal
Analog
Actuator Type
Electric
Supply Voltage (Nominal)
24 VAC
product series specifications
Connections: 3' (0.9 m) 18GA plenum rated cable
Life Expectancy: 100,000+ cycles
Materials of Construction: Plastic, aluminum, steel
Color: Orange actuator
Fail Safe: 35 seconds (not on all models), 35 sec
Supply Voltage: 24 VAC/VDC, 120 VAC, 230 VAC
Control Signal: On-Off, floating or proportional (MFT functionality optional)
Noise (Actuator Type):
SV Series: 55 dB
LV Series: 45 dB
EV/RV Series: 65 dB
Conduit Connection: 1/2" conduit fitting appliance cable
Feedback: Dependent on model
Auxiliary Switch: Add-on, @SPDT, 3A @ 250V,
Force (Actuator Type):
LV Series: 112 foot lbs (lbf)
SV Series: 337 foot lbs (lbf)
AVK Series: 450 foot lbs (lbf)
EVB Series: 562 foot lbs (lbf)
RVB Series: 1011 foot lbs (lbf)
Compatible Actuators: Actuator included in part number
Actuator Mounting: Included in part number
Drive Time: 90 sec (variable on MFT)
Operating Temperature: -22° to 122°F (-30° to 50°C)
Operating Humidity: 5-95% non-condensing
Enclosure Rating: NEMA 2 / IP54, UL enclosure type 2
Approvals: cULus, UL 60730-1A/-2, -14, CAN/CSA E60730-1:02, CE 2004/108/EC, 2006/95/EC
Warranty: 5 years
product series features
- Increased force ranges for higher close-off pressures
- Field selectable fail-safe actuator positions
- Lower power consumption during operation
- Cast Aluminum linkage
- Locking coupler feature to prevent slipping
- Centering device on linkage to assure proper alignment
- Manual override capability
more information & related documents
Series Description
The Belimo UGVL, SGVL, WGVL, AND FGVL Series New Generation Linear Globe Valve Actuators and Retrofit Linkages offer greater power and flexibility. Engineered to suit a broad range of HVAC applications, both the New Generation Actuators and Retrofit Linkages are highly adaptable making selection, installation, and long-term service worry-free. New force ranges is from 112 lbf 500N to 1011 lbf 4500N and there is a broader travel range from 0.6 in. (15 mm) to 2 in. (50 mm). With a universal format, these retrofit linkages and actuators will fit most globe valves on the market today.
Kele Description
GLOBE VLV, SCHNEIDER VLV LINKAGE, LV AND SV SERIES, 1/2 IN - 2 IN VLV, 24V, SR, MOD, 2-10VDC
Manufacturer
Belimo
