G665C+AFX24-MFT-X1 | Belimo | Control Valves

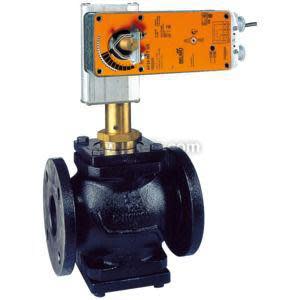

Globe Valve, 2-Way, 2-1/2 in, Modified Equal Percentage Flow, ANSI Class 125, Flange Connection, 65 CV, Bronze Trim, Electric Actuator,24 V, Spring Return, MFT/Programmable 180 in-lb Torque, includes 3 ft of 18 GA Appliance Cable with 1/2 in NPT Conduit Connection
Brand:Belimo
MPN:G665C+AFX24-MFT-X1
SKU:G665C+AFX24-MFT-X1
List Price:
$4,524.00
Today's Price:
$2,352.48
Log in for customized pricingproduct specifications
Connection
Flange
Cv
65 CV
Fail-Safe
Spring Return
Type
Assembly
Pattern
2-way
Trim Material
Stainless Steel
Size
2-1/2 in
Actuator Type
Electric
Supply Voltage (Nominal)
24 VAC
product series specifications
Actuator Control Type: Floating point, On-Off, 2-10 VDC multi-function technology (MFT)
Actuator Manual Override: All models except LF
Actuator Electrical Connection: 3' (1mm) cable with 1/2" conduit fitting standard
Connections: NPT female ends
Flow Characteristic: G2: Equal percentage; G2S, G3, G3D: Linear
Maximum Pressure Rating: 250 psi
Media Compatibility: Chilled or Hot Water, 60% Glycol, Steam (G2, G2S)
Pipe Size Range: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Minimum Closeoff:85 psi
Maximum Differential Pressure: Water 35 psi (241 kPa); Steam 20 psi (138 kPa) to 35 psi (241 kPa)
Maximum Inlet Pressure: Steam 35 psi (241 kPa)
Warranty: 5 years
Weight: Varies per valve
product series features
- Full line of spring and non-spring actuators for all applications
- 2-position, floating and modulating control signals for all control sequences
- Self-adjusting stroke
- Visual sliding stroke indicators; position indicators adjusted automatically
- Assembly can be mounted with valve stem horizontal to the pipe
- Self locking valve coupling
- Â
- BENEFITS
- Utilizes full control signal for maximum resolution
- Speeds installation and system check
- Piping flexibility
- Proper valve-actuator connection is ensured
more information & related documents
Series Description
The Belimo G2 Series 2-way and G3 Series 3-way threaded globe valves can be used for two-position, floating or proportional control of HVAC hot water, chilled water or steam. The valves come assembled with Belimo electric actuators with spring return or non-spring return operation and are ideal for controlling unit ventilators, air handling units and a wide variety of HVAC heating and cooling systems.
Kele Description
GLOBE VLV ASMBLY, 2-WAY, 2-1/2 IN, ANSI CLASS 125, FLANGE, 65 CV, 24V, SR, MFT/PROGRAMMABLE
Manufacturer
Belimo
2018 Globe valve datasheet
