V-02 | VSI | Control Valves
2IN/V-BALL/ NPT/WAFER/ANSI/150/300
Brand:VSI
MPN:V-02
SKU:V02
product specifications
Connection
Wafer
Type
Valve
Size
2 in
product series specifications
Size: 2" thru 24"
Cv: 135 thru 43116
Body Pattern: Lugged 150 # butterfly
Flow Characteristic: Modified EQ%
Rangeability: 10:1 FOR 30° to 70° RANGE
Leakage Rating: Bubble Tight
Leakage Class: Bubble Tight
Mounting Flange: ANSI 150
Body Rating: ASME/ANSI CLASS 125
Maximum Closeoff Pressure: 100 PSI, 200 PSI
Maximum Pressure Rating: ASME/ANSI CLASS 125
Maximum Pressure: 100 PSI, 200 PSI
Media Compatibility: H2O - 50% GLYCOL
Media Temperature Range: -30° to 225°F (-34° to 107°C)
Supply Voltage: 120VAC, 24 VAC
Supply Frequency: 60 Hz
Supply VA Ranges from: 40.8 VA to 474 VA depending on actuator
Supply Current: 0.34A to 7.2 A depending on actuator
Conduit Connection: (1) 1/2" NPT CONDUIT CONN
Air Connections: 80 PSI 1/4" NPT
Feedback: 4-20 mA
Auxiliary Switch: (2) SPDT, OPTIONAL
Action: FLOATING, MODULATING, 2 POSITION, 4 POSITION, 3 POSITION
Rotation: 90 Degrees
Actuator Compatibility: Dependent on model
Actuator Mounting: ISO 5211, direct coupled
Weight: 120 thru 5690 lbs. depending on model
Enclosure Rating: NEMA 4 on select models
Approvals: CSA US FILE 226201
product series features
- Good for chilled water, hot water and 50% Glycol applications
- Ductile iron body construction
- Stainless steel disc and stem
more information & related documents
Series Description

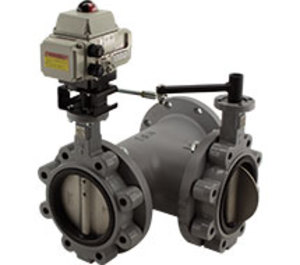

The Valve Solutions KB Series 3-way butterfly valves are available in sizes from 2 in. to 24 in. and come with a variety of options to meet your needs. The Fusion Bonded Epoxy coated body along with the EPDM seat and o-ring make for a very durable and long lasting butterfly valve. These valves are available in 100 PSI, 150 PSI, and 200 PSI close off ratings for modulating control. These are available with low or high pressure pneumatic actuators or with Valve Solutions new 1000X series actuators.
Kele Description
2IN/V-BALL/ NPT/WAFER/ANSI/150/300
Manufacturer
VSI
