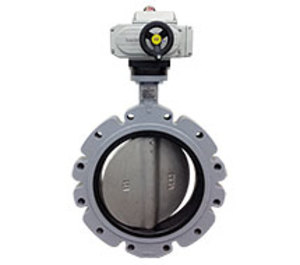

KB1-2-06-1E2V | VSI | Control Valves
2W/6IN/100PSI/120V/ ELECT/2-POS/FLTG/NEMA4
Brand:VSI
MPN:KB1-2-06-1E2V
SKU:KB12061E2V
List Price:
$2,735.00
Today's Price:
$1,422.20
Log in for customized pricingproduct specifications
Connection
NPT
Cv
1579 CV
Fail-Safe
Non-Spring Return
Type
Assembly
Pattern
2-way
Trim Material
Stainless Steel
Size
6 in
Control Signal
Two Position, Floating
Close Off Pressure
100
Actuator Type
Electric
Supply Voltage (Nominal)
120 VAC
product series specifications
Size: 2" thru 24"
Cv: 135 thru 43116 (See ordering)
Body Pattern: Lugged 150 # butterfly
Flow Characteristic: Modified EQ%
Rangeability: 10:1 for 30° to 70° range
Leakage Rating: Bubble tight
Mounting Flange: ANSI 150
Body Rating: ASME/ANSI Class 125
Maximum Closeoff Pressure: 100 PSI, 150 PSI, 200 PSI
KB1 Models 100 PSI
KB2 Models 200 PSI (up to 10"); 150 PSI (12" and up)
Maximum Pressure Rating: ASME/ANSI Class 125
Media Compatibility: H2O - 50% Glycol
Media Temperature Range: -30° to 225°F (-34° to 107°C)
Disc: 304 Stainless Steel
Disc Seal: EPDM
Supply Voltage: 24 VAC, 120 VAC
Supply Frequency: 60 Hz
Supply VA: Ranges from 38.4 VA to 474 VA depending on actuator
Supply Current: 0.34A to 7.2 A depending on actuator
Conduit Connection: (1) 1/2" NPT conduit connection
Air Connections: 80 PSI 1/4" NPT
Feedback: 4-20 mA
Auxiliary Switch: (2) SPDT, optional
Action: Floating, modulating, 2-position
Rotation: 90 degrees
Actuator Compatibility: Dependent on model
Actuator Mounting: ISO 5211, direct-coupled
Weight: 32 to 1754 lb (14.5 to 795.6 kg) depending on model
Enclosure Rating: NEMA 4 on select models
Approvals: CSA US File 226201
Meets ARRA or BAA: Yes
product series features
- Good for chilled water, hot water and 50% Glycol applications
- Ductile iron body construction
- PTFE bushing
- Stainless steel disc and stem
- Manual gear wheel available
- Actuators come with two 1/2 in. conduit entries
more information & related documents
Series Description
The Valve Solutions KB Series butterfly valves are available in sizes from 2 in. to 24 in. and come with a variety of options to meet your needs. The Fusion Bonded Epoxy coated body along with the EPDM seat and o-ring make for a very durable and long lasting butterfly valve. These valves are available in 100 PSI, 150 PSI, and 200 PSI close off ratings for 2 position control. These are available with low or high pressure pneumatic actuators or with Valve Solutions new 1000X series actuators.
Kele Description
2W/6IN/100PSI/120V/ ELECT/2-POS/FLTG/NEMA4
Manufacturer
VSI
KB Series Datasheet
