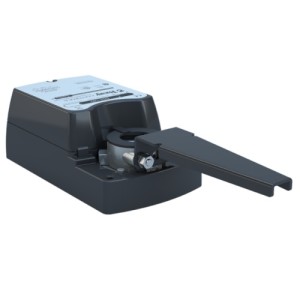

DM24-70 | Bray | Control Valves
Damper & Valve actuator, 24 VAC/dc, 70 lb-in, modulating, Non-Spring Return, Nema 2, IP42, Input Signal 0 (2) to 10 VDC, 0 (4) to 20 VDC, or 0 (4) to 20 mA
Brand:Bray
MPN:DM24-70
SKU:DM24-70
List Price:
$383.00
Today's Price:
$199.16
Log in for customized pricingproduct specifications
Enclosure Rating
IP42, NEMA 2
Torque
70 in-lb
Type
Actuator Only
Options
Manual Override Handwheel
Control Signal
Analog
With Auxiliary Switch
Yes
Close Off Pressure
50 psi
Actuator Type
Non-Spring Return
Actuator Power Type
Electric
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
Size Range: 35 to 310 in-lb (4-35 Nm) Torque
Product Type: Electric Actuator
more information & related documents
Series Description
Bray’s wide variety of commercial electric actuator choices increases flexibility when choosing peripheral products for Building Automation Systems. Bray offers many different torque outputs and optional features to ensure you have the best actuator for the application. Jumper or DIP switch selectable features allow versatility in the field. The actuators are maintenance-free, which means fewer call backs after installation and start-up. In addition, their actuators are manufactured to ISO 9001 and Six Sigma Standards making them the highest quality on the market today.
Kele Description
DAMPER & 24VAC/DC,70LB-IN,MOD,NSR
Manufacturer
Bray
Related Documents
Commercial Actuator Submittals D(M)24 Series Sizes 70-280 IOM D(M)24-35 Series IOM D-35 Series Submittal D-70-140-210-280 Submittal DC(M)24 Series Sizes 44-88 IOM DC24-180 Series IOM DC24-310-IOM DC-310 Series Submittal DC44-88 Series Submittal Non Spring Return Damper Actuators Technical Brochure Spring Return Damper Actuators Technical Brochure ST2 Actuator Technical Brochure ST2 Non Spring Return Actuator Technical Brochure VA-35 Series Submittal VAM24-35 IOM VAM24-90 IOM VAM-90 Series Submittal
