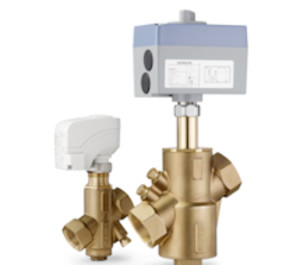

* product series image displayed

599-04321-2 | Siemens Industry | Control Valves

1/2IN PICV 2 GPM NO

Brand:Siemens Industry

MPN:599-04321-2

SKU:599-04321-2

List Price:

$284.00

Today's Price:

$147.68

Lead time of > 15 days. Chat with Kele experts now

product specifications

Connection

NPT

Trim Material

Stainless Steel

Size

1/2 in

GPM

2 GPM

product series specifications

Size: 1/2" to 2" (15 to 50 mm)

Cv Range: 0.5 - 50

Body Pattern: Two-way (Normally Closed and Normally Open) available

Flow Characteristic: Linear

Leakage Rating/Closeoff Pressure: 1/2" to 1 1/4" NO ANSI Class IV (0.01%) @ 200 psi : 1 1/2" to 2" NO ANSI Class IV (0.01%) @ 100 psi : 1/2" to 1 1/4" NC ANSI Class IV (0.01%) @ 45 psi

Materials of Construction: Body: 1/2" to 1 1/4" Brass, 1 1/2" and 2" Ductile Iron; Plug: Brass; Stem, spring : Stainless Steel; Seals : EPDM 281 O-ring

Media Compatibility: Hot or chilled water, up to 50% glycol

Media Temperature Range: 34°F to 248°F (1°C to 120°C)

Compatible Actuators: 1/2" to 1 1/4" (SSD Electronic Actuators) and 1 1/2" to 2" (SAY Electronic Actuators)

Operating Temperature: 41°F to 122°F (5°C to 50°C)

Pressure Rating: 45 psi (1/2? to 1-1/4" NC), 100 psi (1-1/2" to 2" NO), 200 psi (1/2" to 1-1/4" NO)

Warranty: 5 years

product series features

Control valve with integrated pressure regulator and adjustable flow limiter.
ANSI Class 250 valve body.
200 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4-inch Normally Open).
100 psi close-off with ANSI Class IV leakage (1-1/2- and 2-inch Normally Open).
45 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4 inch Normally Closed).
Linear Flow Characteristic.
Stainless Steel Stem.
1-1/2- and 2-Inch Normally Open Valves include P/T ports.
SAY actuators for 1-1/2- and 2-inch Normally Open Valves can also be set for Normally Closed operation (reverse acting).

more information & related documents

Series Description

The Siemens PICV Series 1/2 in. to 1 1/4 in. Pressure Independent Control Valves have a 2.5, 5, or 5.5mm stroke and work with the SSD Series Electronic Actuators. The 1 1/2 in. to 2 in. Normally Open Valves have a 15mm stroke and work with the SAY Series Electronic Actuators. SAY Actuators for 1 1/2 in. and 2 in. Normally Open Valves can also be set for Normally Closed operation (reverse acting). The SSD and SAY Actuators require a 24-Volt power supply to provide floating or 0 to 10 Vdc control. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

1/2IN PICV 2 GPM NO

Manufacturer

Siemens Industry
