171G-10372 | Siemens Industry | Control Valves

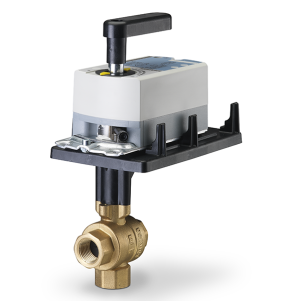

3-way, 2, 100 Cv Ball Valve Coupled with Proportional, Spring Return Actuator
Brand:Siemens Industry
MPN:171G-10372
SKU:171G-10372
product specifications
Connection
NPT
Cv
100 CV
Fail-Safe
Spring Return
Type
Assembly
Pattern
3-way
Trim Material
Brass
Size
2 in
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
Connections: Female NPT
Body Pattern: 3 Way, 2 Way
Leakage Class: ANSI Class 1V
Body Rating: Forged Brass ASTM B283, C37733
Maximum Closeoff Pressure: 200 PSI
Materials Of Construction: Forged Brass or Stainless Steel
Media Compatibility: 50% Water, Glycol Solutions up to 50%
Media temperature:
1/2" to 1-1/4" - 35° to 250°F (2° to 121°C)
1-1/2" to 2" - 35° to 230°F (2° to 110°C)
Actuator Compatibility :Siemens GDE, GLB, GMA, GQD,
Static pressure: 360 psi (2482 kPa)
Flow Optimizer: Glass filled polymer
Ball: Nickel-plated brass or Stainless Steel
Ball seals: Reinforced PTFE seals with EPDM O-rings
Female end connections: Brass
Stem: Brass or stainless steel
Stem seals: EPDM O-rings
Angle of rotation: 0 to 90 degrees
Close-off ratings per ANSI/FCI 70-2: Class IV for A-AB, Class III for B-AB
Maximum operating differential pressure: 1/2" to 1-1/2": 60 psi; 2": 35 psi
Dimensions: See Dimensions table
Weight: See Dimensions table
Warranty: 2 Years
product series features
- 200 psi close-off pressure
- 0.4 to 160 Cv ranges depending on valve size
- 600/WOG/ANSI 250 pressure rating
- Double o-ring stem packing
- Blow-out proof stem for high pressure safety
- Thermal barrier on universal mounting bracket
more information & related documents
Series Description
The Siemens 599 Series ball valves and valve actuators deliver comprehensive control solutions for almost any chilled water, hot water, or 50% glycol applications. Available in spring return, non-spring return, two-position, floating, and proportional control these valves and actuators suit most applications. Two-way valves are available with chrome-plated brass ball and brass stem or stainless steel ball and stem for harsher conditions. The 599 Series has a wide variety of Cv ranges to help you size the control of your application correctly.
Kele Description
3W/2IN/100CV/ BALL/NO/24VAC/ SR/0-10V
Manufacturer
Siemens Industry
Related Documents
599 Series 2-Way Ball Valves Technical Instructions-2013
599 Series 3-Way Ball Valves Submittal Sheet-2013
599 Series 3-Way Ball Valves Technical Instructions-2013
599 Series Ball Valve - 2-Way Technical Instructions-2010
599 Series Ball Valve - Actuator Assemblies Selection Guide
599 Series Ball Valve - Actuators and Assemblies Technical-2010
599 Series Ball Valve - Assembly Weather Shield Installation Instructions
599 Series Ball Valve 2-way Submittal Sheet-2010
Ball Valve Guide
