171C-10308 | Siemens Industry | Control Valves

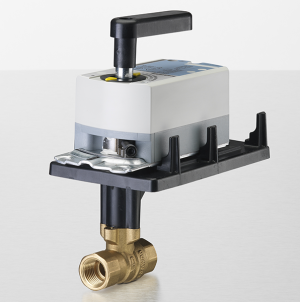

2-way 3/4 inch, 6.3 Cv ball valve assembly with chrome-plated brass ball and brass stem, 0-10 V fail-in-place actuator, 200 psi close-off, NPT

Brand:Siemens Industry

MPN:171C-10308

SKU:171C-10308

List Price:

$382.00

Today's Price:

$198.64

Lead time of > 15 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Connection

NPT

6.3 CV

Fail-Safe

Non-Spring Return

Type

Assembly

Pattern

2-way

Trim Material

Brass

Size

3/4 in

Control Signal

Analog

Supply Voltage (Nominal)

24 VAC

product series specifications

Connections: Female NPT

Body Pattern: 3 Way, 2 Way

Leakage Class: ANSI Class 1V

Body Rating: Forged Brass ASTM B283, C37733

Maximum Closeoff Pressure: 200 PSI

Materials Of Construction: Forged Brass or Stainless Steel

Media Compatibility: 50% Water, Glycol Solutions up to 50%

Media temperature:

1/2" to 1-1/4" - 35° to 250°F (2° to 121°C)

1-1/2" to 2" - 35° to 230°F (2° to 110°C)

Actuator Compatibility :Siemens GDE, GLB, GMA, GQD,

Static pressure: 360 psi (2482 kPa)

Flow Optimizer: Glass filled polymer

Ball: Nickel-plated brass or Stainless Steel

Ball seals: Reinforced PTFE seals with EPDM O-rings

Female end connections: Brass

Stem: Brass or stainless steel

Stem seals: EPDM O-rings

Angle of rotation: 0 to 90 degrees

Close-off ratings per ANSI/FCI 70-2: Class IV for A-AB, Class III for B-AB

Maximum operating differential pressure: 1/2" to 1-1/2": 60 psi; 2": 35 psi

Dimensions: See Dimensions table

Weight: See Dimensions table

Warranty: 2 Years

product series features

200 psi close-off pressure
0.4 to 160 Cv ranges depending on valve size
600/WOG/ANSI 250 pressure rating
Double o-ring stem packing
Blow-out proof stem for high pressure safety
Thermal barrier on universal mounting bracket

more information & related documents

Series Description

The Siemens 599 Series ball valves and valve actuators deliver comprehensive control solutions for almost any chilled water, hot water, or 50% glycol applications. Available in spring return, non-spring return, two-position, floating, and proportional control these valves and actuators suit most applications. Two-way valves are available with chrome-plated brass ball and brass stem or stainless steel ball and stem for harsher conditions. The 599 Series has a wide variety of Cv ranges to help you size the control of your application correctly.

Kele Description

2W/3/4IN/6.3CV/ BALL/NO/24VAC/ NSR/0-10V

Manufacturer

Siemens Industry
