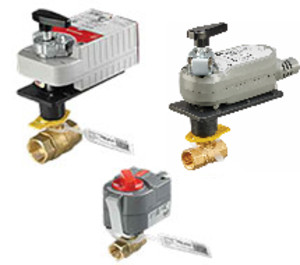

VBN2DKPXE201 | Honeywell | Control Valves
2-WAY, 1-1/4IN-NPT, 14.9 CV, BRASS TRIM, MODULATING (FAIL-SAFE CLOSED) , 24VAC
Brand:Honeywell
MPN:VBN2DKPXE201
SKU:VBN2DKPXE201
product specifications
Connection
NPT
Cv
14.9 CV
Pattern
2-way
Trim Material
Brass
Size
1-1/4 in
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
product series specifications
Size: 1/2" to 3" FNPT (three-way to 2-1/2½)
Cv Range: 0.38 to 266
Body Pattern: Two-way and three-way (mixing or diverting)
Flow Characteristic:
Two-way: Equal percentage for models with parabolic insert, linear for full port models
Three-way: Equal percentage ports A-to-AB and linear ports B-to-AB
Leakage Rating: ANSI Class IV (0.01% of Cv)
Maximum Closeoff Pressure:
Two-way 1/2" and 3/4": 130 psid (897 kPa)
Two-way 1" to 3": 100 psid (690 kPa)
Three-way 1/2" to 1": 50 psid (345 kPa)
Three-way 1-1/4" to 2-1/2": 40 psid (276 kPa)
Materials Of Construction:
Two-way: Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way) ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon® bass seals
Two-way: 316 stainless steel ball and stem
Media Compatibility: Hot or chilled water, up to 50% glycol
Media Temperature Range: -22° to 250°F (-30° to 121°C)
Compatible Actuators: Any Honeywell or Kele 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3"
Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
Operating Temperature:
with MN actuators: -5° to 140°F (-20° to 60°C)
with MS actuators: -40° to 150°F (-40° to 65°C)
with MVN actuators: -4° to 131°F (-20° to 55°C)
Warranty: 5 years
product series features
- Parabolic flow insert constructed into the ball
- Cv ratings similar to globe valves
- Three-way body pattern similar to globe valves
- Low torque means smaller, lower cost actuators
- Common mounting bracket
- Removable manual override handle
- Flexible bracket orientation
- Plenum rated
- Available with or without actuator
- Nema 3R option available
more information & related documents
Series Description
The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves. They are designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics. A single-style bracket maximizes simplicity and flexibility in mounting spring or non-spring return actuators. The valve bodies are 1/2 in. to 3 in. NPT sizes and use low-torque, low-cost actuators.
Kele Description
2-WAY, 1-1/4IN-NPT, 14.9 CV, BRASS TRIM, MODULATING (FAIL-SAFE CLOSED) , 24VAC
Manufacturer
Honeywell
Related Documents
VBN Datasheet
