59-506-1 | Fireye | Combustion Control & Flame Safety

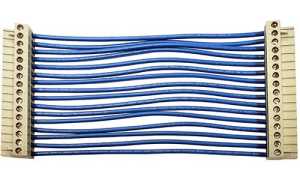

6 connector cable for Fireye MB MultiBurner control system. Connects MB-608E or MB-604E expansion board to MB-600S burner control chassis.
Brand:Fireye
MPN:59-506-1
SKU:59-506-1
List Price:
$328.85
Today's Price:
$171.00
Log in for customized pricingproduct specifications
Type
Chassis Cable Assembly
Used With
Fireye MB Industrial Multiburner Control System with MB-608E or MB-604E
product series specifications
Maximum Number of Burners: 20
Compatible Scanners: UV7A, UV7R4, UV7SC and Flame Rod
Valve Operation: Simultaneous (all burners operate from a single fuel train)
Supply Voltage: 120VAC (+10%, -15%), 50/60 Hz
Power Consumption: 25VA
Temperature Rating:
MB-600S: -40°C to +60°C (-32°F to +122°F)
MB-510 Display: 0°C to +50°C (-32°F to +122°F)
Flame Failure Response: 3 seconds (+/- 0.5 seconds)
Pilot Trial for Ignition: 5, 10, or 15 seconds (selectable)
Main Trial for Ignition: Follows Pilot Trial for Ignition selection
Purge Time: 0 seconds to 60 minutes (increment selectable depending on range)
Contact Ratings:
Fan Motor: 15 Amps Resistive (1/2 HP Inductive)
All Others: 10 Amps Resistive (1/3 HP Inductive)
Shipping Weight: 15 lbs (7 kilograms)
product series features
- 3 second flame failure response time (±0.5 seconds)
- 5-, 10-, or 15-second selectable pilot trial for ignition with 5-second pilot proving time
- Compatible with UV7 ultravoilet flame scanners
- Selectable purge time increments from 0-225 seconds in 15-second increments up to 0-60 minutes in 4-minute increments
- UL recognized, FM approved
more information & related documents
Series Description
Fireye's MB multi-burner monitoring system controls the start-up sequence and monitors the flame of up to 20 individual gas, oil or combination gas/oil burners connected to a common valve train. Dynamic on-board diagnostics check for faulty relays, proof of valve closure, high and low fire switch interlocks, and shortened air switch. It can specifically identify which burner caused the initial flame failure. The MB-600S chassis directly powers pilot and main gas valves and ignition transformers. The built in blower output, purge timing and modulation control, let you add independent limits and a controller to create a complete combustion control system for furnace, oven or other multi-burner applications.
Kele Description
CABLE, 6 IN. (152 MM), EXPANSION MODULE
Manufacturer
Fireye
