UV7SC | Fireye | Combustion Control & Flame Safety

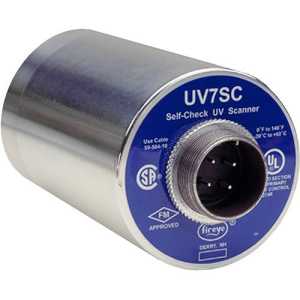

Fireye's UV7SC self-checking ultrasonic flame scanner is used for monitoring continuous gas or oil flames. Internal mechanical shutter speed: 10 seconds. 7-3/4 long scanner body, 3-1/4 diameter. 1 pipe thread sight tube entrance, 3/8 pipe thread purge air entrance. Purge air flow 5 cfm, 10 psi max. Requires cable and connector (Fireye 59-504-010)

Brand:Fireye

MPN:UV7SC

SKU:UV7SC

List Price:

$3,353.85

Today's Price:

$1,744.00

Lead time of 5 days. Chat with Kele experts now

product specifications

Type

Flame Scanner

Used With

Fireye UV7 Discrete Ultraviolet Flame Scanner Sytem

product series specifications

SPECIFICATIONS

UV7A4

Supply: 425 VDC ±25 VDC

Discharge Current:0.3 mA

Supply Wiring: 122 cm (4 ft.) shielded instrument cable with two #18 AWG conductors

Max Operating Distance: 76m (250 ft.)

(Total Wire Length)

Temperature Range: –20° to +125°C (–4° to 257°F)

Shipping Weight: 1.4 kilograms (3 lbs.)

Options: Magnifying lens (P/N 46-185)

UV7R4

Supply Voltage: 425 VDC ±25 VDC

Discharge Current: 0.1 mA

Supply Wiring: 305 cm (10 ft.) cable lead of two #18 AWG conductors

Max Operating Distance: 76m (250 ft.)

(Total Wire Length)

Temperature Range: –20° to +60°C (-4° to 140°F)

Shipping Weight: 1.4 kilograms (3 lbs.)

Options: Magnifying lens (P/N 46-185), 1/2" F.N.P.T. insulated coupling

(P/N 35-319) or radiation shield (P/N 36-936)

UV7SC

Electrical: Supply Voltage: 120V +10/-15%, 60HZ

Supply Current: 0.04A

Output: 10V square wave frequency modulated

Mechanical: Overall Length: 197 mm (7-3/4")

Diameter: 83 mm (3-1/4")

Housing Material:Machined 6061 aluminum alloy

Finish: Clear anodized

Sight Tube Entrance: 25 mm (1") pipe thread

Purge Air Entrance: 10 mm (3/8") pipe thread

Purge Air Flow: 5 cfm, 10 psi maximum

Installation Requirements: Cable and connector for scanner (P/N 59-504-010)

Supply Wiring Instrumentation cable with two pairs of individually shielded #18 AWG

conductors, 60°C (140°F), 300V minimum, ALPHA #5620B1802 or

BELDEN #9368

Temperature Range: –20° to +60°C (-4° to 140°F) case temperature

Shipping Weight: 2 kilograms (4.5 lbs.)

Optical Angle of View: @ 2.5° depending on sight pipe size and length

Spectral Sensitivity: 180 to 230 nanometers; scanner is solar blind

product series features

Compatible with MB and SB series controls, and Fireye flame sensing modules, MBPF-100S and MB-600PF
These ultraviolet flame scanners require flame amplifiers

more information & related documents

Series Description

Fireye's UV7 series is composed of discrete flame scanners that are compatible with MB (Multi-Burner) series controls, SB (Single-Burner) series controls, and the flame sensing modules, MBPF-100S and MB-600PF. The UV7A4 functions as a high-sensitivity non self-checking ultraviolet scanner for monitoring gas or oil flames which cycle on and off frequently. The UV7R4 is a 90° right angle non self-checking ultraviolet flame scanner also used for monitoring gas or oil flames which cycle on and off frequently. The self-checking ultraviolet flame scanner, Fireye's UV7SC, is perfect for monitoring continuous gas or oil flames.

Kele Description

1" NPT SELF-CHECK UV SCANNER

Manufacturer

Fireye
