55UV5-1009 | Fireye | Combustion Control & Flame Safety
Fireye's 55UV5 discrete flame scanners are self-checking, ultraviolet devices used to detect the presence or absence of flames that emit UV radiation from fossil fuels like natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates, and diesel fuels. When used with a flame amplifier, the 55UV5 provides flame failure protection on single and multi-burner industrial applications. Fireye's 55UV5 scanners monitor the flame of only one burner, and are compatible with the Flame-Monitor, D-Series, FlameWorx, and MicroM control models.
Brand:Fireye
MPN:55UV5-1009
SKU:55UV5-1009
product specifications
Type
Flame Scanner
Used With

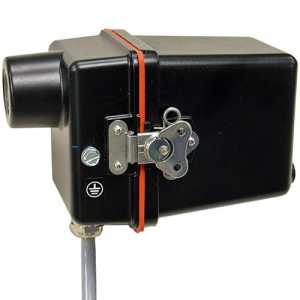

Fireye 55UV5 Self-Checking Ultraviolet Discrete Flame Scanner
product series specifications
MOUNTING:
Models are provided with 1" female thread mounting, British Whitworth (BSP).
HOUSING:
Material: Cast Aluminum with grey epoxy coat finish
Environmental: NEMA 4X, IP66
Temperature Rating: Generally -40° to 199°F; Class II, III, Div 2, Groups F-G using Anaconda 1/2" Type HVTA liquid-tight: -40° to 140°F
Optical Range: 190 to 250 nanometers. No response to infrared radiation or visible light.
ELECTRICAL:
Power Requirement: 4 VA AC from associated Fireye control. NOTE: Cable must be installed in 1/2" liquid-tight flexible conduit
Frequency: 60 HZ
Electrical Connection: Flexible conduit fitting and 20 ft (6m) of five conductor cable.
INTEGRAL CABLE SPECIFICATION:
Four (4) Conductors: #18 AWG (16x30) strand tinned copper
Diameter: 0.110" Nominal O.D.
Colors: Green, White, Black and Red (Red not used)
Two (2) Conductors: #22 AWG (7x30) strand tinned copper
Diameter: 0.093" Nominal O.D.
Colors: Blue and Yellow
Insulation Material: EXAR 150A .074" nominal O.D.
Jacket Material: EXAR 150A .074" pressure extruded
Wall Thickness: .045" NOM.
Finished Diameter: .418" NOM.
Temperature: -40°F (-40°C) to 257°F (125°C)
product series features
- NEMA 4X/IP66 environmental approval
- 1" NPT thread mounting
more information & related documents
Series Description
Fireye's 55UV5 discrete flame scanners are self-checking, ultraviolet devices used to detect the presence or absence of flames that emit UV radiation from fossil fuels like natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates, and diesel fuels. When used with a flame amplifier, the 55UV5 provides flame failure protection on single and multi-burner industrial applications. Fireye's 55UV5 scanners monitor the flame of only one burner, and are compatible with the Flame-Monitor, D-Series, FlameWorx, and MicroM control models.
Kele Description
UV SELF-CHECK SCANNER. CLASS 1, DIV 2, GR A-D, NEMA 4X. 1" NPT, 102 - 260 VAC, 50/60 HZ.
Manufacturer
Fireye
Combustion and Flame Safety Solutions from Lesman
