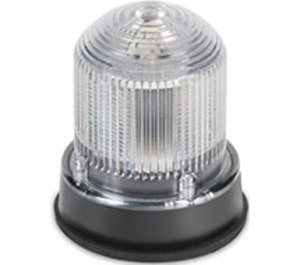

125XBRIRGA120AB | Edwards Signaling | Alarms & Indication
LED MULTI-STATUS INDICATOR RGA 120VAC BLACK BASE
Brand:Edwards Signaling
MPN:125XBRIRGA120AB
SKU:125XBRIRGA120AB
List Price:
$1,238.49
Today's Price:
$644.01
Log in for customized pricingproduct specifications
Type
Indicator Light
Display
LED
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage:
125XBRiRxA24Dx: 24 VDC @ 15 mA
125XBRiRxA120Ax: 120 VAC, 50/60Hz @ 12 VA
Off State Leakage: 5 mA
Surge: Inrush/Duration
125XBRiRxA24Dx: 28.5A/65uSeconds
125XBRiRxA120Ax: 28.5A/212uSeconds
Wiring:
-DC/Neutral: Black/White
Red LED: Red
Amber LED: Yellow
Blue or Green LED: Blue with Green Trace
LED Colors: Red/Green/Amber or Red/Blue/Amber
Flash Mode: Dipswitch enabled
Flash Rate: XTRA-SAFE™ Mode, Red 240 FPM, Amber120 FPM, Green or Blue 65 FPM
Projected LED Life: 148,000 hours
Operating Temperature: -31° to 150°F (-35° to 66°C)
Mounting: 3/4" pipe mount attachment, outlet box attachment, or wall mounting bracket
Enclosure Rating: NEMA 4X
Dimensions: 3.25"W x 3.875"H (82.6 x 98.4mm)
Weight: 0.5 lbs (0.22 Kg)
Approvals: UL File #E340873
Warranty: 1 year
product series features
- Available in 24 VDC or 120 VAC
- Available with gray or black base
- Available in Red/Blue/Amber or Red/Green/Amber
- Option for panel or conduit mounting
- PLC Compatible
- XTRA-SAFE Technology enables status indication for those who are color blind
- Dip switch settings for use with or without external control
- Immune to shock and vibration
- Protective wire guard available, Cat. No. 125GRD
more information & related documents
Series Description
The Edwards Signaling 125XBRi Series XTRA-BRITE™ LED Multi-Status Indicator is a UL and cUL listed, flashing or steady, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. The lens is made of shatter resistant polycarbonate. The lights are available in 24 VDC and 120 VAC 50/60 Hz, in either Red/Blue/Amber or Red/Green/Amber.
Kele Description
LED MULTI-STATUS INDICATOR RGA 120VAC BLACK BASE
Manufacturer
Edwards Signaling
Related Documents
125XBRi Series Datasheet
