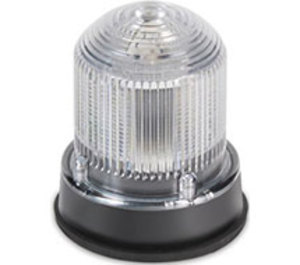

* product series image displayed

125XBRIRBA24D | Edwards Signaling | Alarms & Indication

LED MULTI-STATUS INDICATOR RBA 24VDC GRAY BASE

Brand:Edwards Signaling

MPN:125XBRIRBA24D

SKU:125XBRIRBA24D

List Price:

$1,238.49

Today's Price:

$644.01

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Enclosure Rating

NEMA 4X

Type

Indicator Light

Display

LED

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage:

125XBRiRxA24Dx: 24 VDC @ 15 mA

125XBRiRxA120Ax: 120 VAC, 50/60Hz @ 12 VA

Off State Leakage: 5 mA

Surge: Inrush/Duration

125XBRiRxA24Dx: 28.5A/65uSeconds

125XBRiRxA120Ax: 28.5A/212uSeconds

Wiring:

-DC/Neutral: Black/White

Red LED: Red

Amber LED: Yellow

Blue or Green LED: Blue with Green Trace

LED Colors: Red/Green/Amber or Red/Blue/Amber

Flash Mode: Dipswitch enabled

Flash Rate: XTRA-SAFE™ Mode, Red 240 FPM, Amber120 FPM, Green or Blue 65 FPM

Projected LED Life: 148,000 hours

Operating Temperature: -31° to 150°F (-35° to 66°C)

Mounting: 3/4" pipe mount attachment, outlet box attachment, or wall mounting bracket

Enclosure Rating: NEMA 4X

Dimensions: 3.25"W x 3.875"H (82.6 x 98.4mm)

Weight: 0.5 lbs (0.22 Kg)

Approvals: UL File #E340873

Warranty: 1 year

product series features

Available in 24 VDC or 120 VAC
Available with gray or black base
Available in Red/Blue/Amber or Red/Green/Amber
Option for panel or conduit mounting
PLC Compatible
XTRA-SAFE Technology enables status indication for those who are color blind
Dip switch settings for use with or without external control
Immune to shock and vibration
Protective wire guard available, Cat. No. 125GRD

more information & related documents

Series Description

The Edwards Signaling 125XBRi Series XTRA-BRITE™ LED Multi-Status Indicator is a UL and cUL listed, flashing or steady, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. The lens is made of shatter resistant polycarbonate. The lights are available in 24 VDC and 120 VAC 50/60 Hz, in either Red/Blue/Amber or Red/Green/Amber.

Kele Description

LED MULTI-STATUS INDICATOR RBA 24VDC GRAY BASE

Manufacturer

Edwards Signaling
