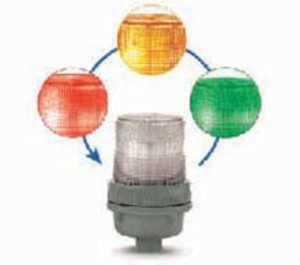

* product series image displayed

105XBRIRGA24D | Edwards Signaling | Alarms & Indication

LED MULTI-STATUS INDICATOR RGA 24VDC

Brand:Edwards Signaling

MPN:105XBRIRGA24D

SKU:105XBRIRGA24D

List Price:

$1,677.06

Today's Price:

$872.07

product datasheet

installation instructions

catalog page

1 in stock

product specifications

Enclosure Rating

NEMA 4X

Mount

Wall, Surface

Type

Indicator Light

Color

Red, Green, Amber

Display

LED

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage:

105XBRiRxA24D: 24 VDC, 15 mA; 105XBRiRxA120A: 120 VAC, 50/60Hz, 12 VA

Max. Off State Leakage Current: 5 mA

Surge: 105XBRiRxA24D: 28A/65µs; 105XBRiRxA120A: 28.5A/212µs

LED Colors: Red/Green/Amber or Red/Blue/Amber

Flash Mode: Dipswitch settings for use with or without external control

Flash Rate: XTRA-SAFE™ Mode; Red 240 FPM, Amber 120 FPM, Green or Blue 65 FPM

Projected LED Life: 148,000 hours

Operating Temperature: 31° to 150°F (-35° to 66°C)

Mounting: 3/4" pipe mount attachment, outlet box attachment, or wall mounting bracket

Enclosure Rating: NEMA 4X

Dimensions: 4.5"W x 4.625"H (114 x 117 mm)

Weight: 1.4 lb (0.63 Kg)

Approvals: UL File #E212211

Warranty: 1 year

product series features

Available in 24V DC or 120V AC
Available in Red/Blue/Amber or Red/Green/Amber
Three mounting bases: 3/4 in. pipe mount attachment, outlet box attachment, or wall mounting bracket
PLC compatible
XTRA-SAFE™ Technology enables status indication for those who are color blind
Dip switch settings for use with or without external control
Immune to shock and vibration

more information & related documents

Series Description

The Edwards Signaling 105XBRi Series XTRA-BRITE™ LED multi-status indicator is a heavy duty, reliable UL and cUL listed, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure that is UL listed for Marine use, and can be panel or conduit mounted. The base is manufactured from glass-reinforced thermoplastic polyester resin and the double fresnel lens is made of shatter resistant polycarbonate. The lights are available in 24 VDC and 120 VAC 50/60 Hz, in either Red/Blue/Amber or Red/Green/Amber.

Kele Description

LED MULTI-STATUS INDICATOR RGA 24VDC

Manufacturer

Edwards Signaling
