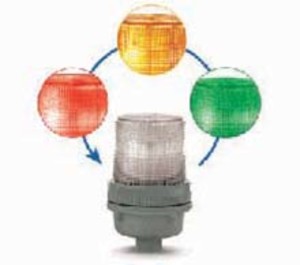

* product series image displayed

105XBRIRGA120A | Edwards Signaling | Alarms & Indication

LED MULTI-STATUS INDICATOR RGA 120VAC

Brand:Edwards Signaling

MPN:105XBRIRGA120A

SKU:105XBRIRGA120A

List Price:

$-.--

Today's Price:

$-.--

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Enclosure Rating

NEMA 4X

Mount

Wall, Surface

Type

Indicator Light

Color

Red, Green, Amber

Display

LED

Supply Voltage (Nominal)

120 VAC

product series specifications

Supply Voltage:

105XBRiRxA24D: 24 VDC, 15 mA; 105XBRiRxA120A: 120 VAC, 50/60Hz, 12 VA

Max. Off State Leakage Current: 5 mA

Surge: 105XBRiRxA24D: 28A/65µs; 105XBRiRxA120A: 28.5A/212µs

LED Colors: Red/Green/Amber or Red/Blue/Amber

Flash Mode: Dipswitch settings for use with or without external control

Flash Rate: XTRA-SAFE™ Mode; Red 240 FPM, Amber 120 FPM, Green or Blue 65 FPM

Projected LED Life: 148,000 hours

Operating Temperature: 31° to 150°F (-35° to 66°C)

Mounting: 3/4" pipe mount attachment, outlet box attachment, or wall mounting bracket

Enclosure Rating: NEMA 4X

Dimensions: 4.5"W x 4.625"H (114 x 117 mm)

Weight: 1.4 lb (0.63 Kg)

Approvals: UL File #E212211

Warranty: 1 year

product series features

Available in 24V DC or 120V AC
Available in Red/Blue/Amber or Red/Green/Amber
Three mounting bases: 3/4 in. pipe mount attachment, outlet box attachment, or wall mounting bracket
PLC compatible
XTRA-SAFE™ Technology enables status indication for those who are color blind
Dip switch settings for use with or without external control
Immune to shock and vibration

more information & related documents

Series Description

The Edwards Signaling 105XBRi Series XTRA-BRITE™ LED multi-status indicator is a heavy duty, reliable UL and cUL listed, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure that is UL listed for Marine use, and can be panel or conduit mounted. The base is manufactured from glass-reinforced thermoplastic polyester resin and the double fresnel lens is made of shatter resistant polycarbonate. The lights are available in 24 VDC and 120 VAC 50/60 Hz, in either Red/Blue/Amber or Red/Green/Amber.

Kele Description

LED MULTI-STATUS INDICATOR RGA 120VAC

Manufacturer

Edwards Signaling
