105XBRIRBA120A | Edwards Signaling | Alarms & Indication

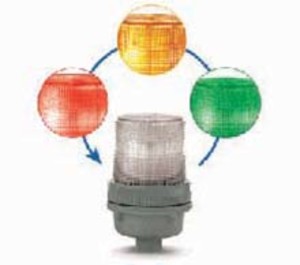

LED MULTI-STATUS INDICATOR RBA 120VAC
Brand:Edwards Signaling
MPN:105XBRIRBA120A
SKU:105XBRIRBA120A
List Price:
$1,677.06
Today's Price:
$872.07
Log in for customized pricingproduct specifications
Mount
Wall, Surface
Type
Indicator Light
Color
Red, Blue, Amber
Display
LED
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage:
105XBRiRxA24D: 24 VDC, 15 mA; 105XBRiRxA120A: 120 VAC, 50/60Hz, 12 VA
Max. Off State Leakage Current: 5 mA
Surge: 105XBRiRxA24D: 28A/65µs; 105XBRiRxA120A: 28.5A/212µs
LED Colors: Red/Green/Amber or Red/Blue/Amber
Flash Mode: Dipswitch settings for use with or without external control
Flash Rate: XTRA-SAFE™ Mode; Red 240 FPM, Amber 120 FPM, Green or Blue 65 FPM
Projected LED Life: 148,000 hours
Operating Temperature: 31° to 150°F (-35° to 66°C)
Mounting: 3/4" pipe mount attachment, outlet box attachment, or wall mounting bracket
Enclosure Rating: NEMA 4X
Dimensions: 4.5"W x 4.625"H (114 x 117 mm)
Weight: 1.4 lb (0.63 Kg)
Approvals: UL File #E212211
Warranty: 1 year
product series features
- Available in 24V DC or 120V AC
- Available in Red/Blue/Amber or Red/Green/Amber
- Three mounting bases: 3/4 in. pipe mount attachment, outlet box attachment, or wall mounting bracket
- PLC compatible
- XTRA-SAFE™ Technology enables status indication for those who are color blind
- Dip switch settings for use with or without external control
- Immune to shock and vibration
more information & related documents
Series Description
The Edwards Signaling 105XBRi Series XTRA-BRITE™ LED multi-status indicator is a heavy duty, reliable UL and cUL listed, multi-color visual signaling device. It features a corrosion resistant Type 4X enclosure that is UL listed for Marine use, and can be panel or conduit mounted. The base is manufactured from glass-reinforced thermoplastic polyester resin and the double fresnel lens is made of shatter resistant polycarbonate. The lights are available in 24 VDC and 120 VAC 50/60 Hz, in either Red/Blue/Amber or Red/Green/Amber.
Kele Description
LED MULTI-STATUS INDICATOR RBA 120VAC
Manufacturer
Edwards Signaling
Related Documents
105XBRi Installation Instructions
