P-047697-0170401 | Edwards Signaling | Alarms & Indication

SURFACE BOX FOR MODEL 89 AND 869

Brand:Edwards Signaling

MPN:P-047697-0170401

SKU:P0476970170401

List Price:

$144.00

Today's Price:

$74.88

Lead time of 3 days. Chat with Kele experts now

product specifications

Type

Accessory

product series specifications

Supply Voltage:

-N5 (89, 869, 868): 120 VAC

-AQ (89, 869, 868): 24 VDC, 24 VAC

-120A (125STRH): 120 VAC -20% to +10

Current Rating: 125STRH: 120 mA

Horn/Strobe:

24 VDC, 22 mA/390 mA

24 VAC, 72 mA/390 mA

120 VAC, 24 mA/87 mA

Average Candela with Colored Lens: Amber: 90 cd; Blue: 20 cd; Clear: 150 cd; Green: 70 cd; Red: 21 cd

Color: Amber, Blue, Clear, Green, Red

Horn Loudness: 90 dba @ 10'

Peak Candela: 300,000 cd

Strobe Tube Life: 3,000 hrs, 1,000 hrs

Operating Temperature: 869, 869STR, 89STR: 32° to 120°F (0° to 49°C);

868, 868STR, 125STRH: -31° to 150°F (-35° to 66°C)

Operating Humidity:

89STR: 85% RH @ 86°F (30°C)

869, 869STR: 93% RH @ 90°F (32°C)

868, 868STR, 125STRH: 98% RH @ 104°F (40°C)

Mounting:

125STRH: 1/2" MNPT in center of plate

868: Weatherproof surface box supplied - no NEMA rating

869: 3" sq x 1-1/2" electrical box with 1-1/2" extension ring (need 3" depth)

89STR: Single gang box or equivalent

Enclosure Rating:

125 STRH: NEMA 4X

89STR, 869STR: Indoor, No NEMA rating

868, 868STR: Outdoor surface, NEMA rating is mounting box dependent

Dimensions:

89 STR: 5.0"H x 3.375"W (12.7 x 8.6 cm)

869 STR, 868 STR, 869, 868: 5.50"H x 5.50"W (14 x 14 cm)

125STRH: 3.875"H x 3.25"W (9.84 x 8.26 cm)

Approvals: CE, CSA, UL File #E122942 & E11459

Warranty: 2 years

product series features

  • Indoor and outdoor applications
  • Amber, blue, clear, green, and red colors
  • 24 VAC, 24 VDC, and 120 VAC
  • Surface and panel mount

more information & related documents

Series Description

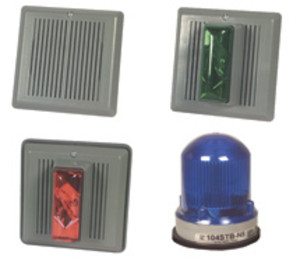

Edwards Signaling strobes and horns are available in wall-mount and panel-mount configurations with a variety of colors and voltages. These emergency signaling products are designed for use in BAS, and HVAC applications. Model 125STRH is a 120-Volt AC panel-mount strobe in NEMA 4X enclosure. Model 89STR mounts on a single-gang box and is a single, indoor, flush-mount strobe. Model 869STR is an indoor, flush-mount horn and strobe combination. Model 869 is an indoor, flush-mount horn only. Model 868STR is an outdoor, surface-mount horn and strobe combination. Model 868 is an outdoor, surface-mount horn. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

SURFACE BOX FOR MODEL 89 AND 869

Manufacturer

Edwards Signaling
