57PLEDMW24ADB | Edwards Signaling | Alarms & Indication
LED BEACON WHITE 24V BLACK BASE
Brand:Edwards Signaling
MPN:57PLEDMW24ADB
SKU:57PLEDMW24ADB
List Price:
$2,109.00
Today's Price:
$1,096.68
Log in for customized pricingproduct specifications
Type
Beacon Light
Color
Black
Display
LED
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage:
57PLEDMx24ADx: 12 VDC, 0.7A, 24 VAC/VDC, 0.55A
57PLEDMx120Ax: 120 VAC, 50/60Hz, 0.25A
Color: Amber, Blue, Green, Magenta, Red, Clear
Projected LED Life: 148,000 hours
Flash Mode: 7 selectable patterns with HIPS switch (See Flash Rate Table)
Mounting: On 3/4" (19mm) NPT threaded conduit
Operating Temperature: -31° to 150.8°F (-35° to 66°C)
Enclosure Rating: NEMA 4X
Dimensions: 8" x 6.5" (203 x 165 mm)
Weight: 3.4 lbs (1.54 kg)
Approvals: UL 1638 and cUL Listed (E11459)
Warranty: 1.5 years
product series features
- Six lens colors
- Seven flash patterns (includes steady-on)
- Hidden in Plain Sight (HIPS) program switch
- High level of immunity to shock and vibration
- Black or gray base option
more information & related documents
Series Description

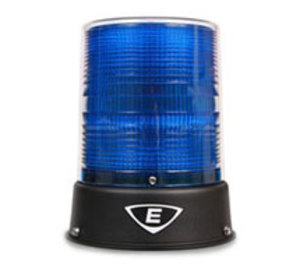

The Edwards Signaling Polaris™ Class 57PLEDM LED beacons are NEMA Type 4X and IP66 rated visual signals designed for indoor and outdoor applications. The Polaris Class is designed for industrial or commercial applications that require the longevity of an LED combined with the brightness of a xenon strobe. These units are very effective in high-noise areas where ear protection is worn or audible signals may not be heard.
Kele Description
LED BEACON WHITE 24V BLACK BASE
Manufacturer
Edwards Signaling
Related Documents
57 Series Datasheet
