125XBRMB120AB | Edwards Signaling | Alarms & Indication

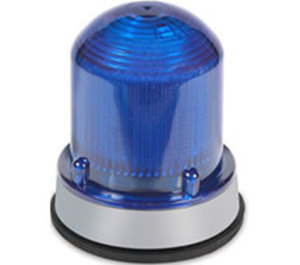

LED ON-FLASH BEACONS BLUE 120VAC BLACK BASE
Brand:Edwards Signaling
MPN:125XBRMB120AB
SKU:125XBRMB120AB
List Price:
$1,067.00
Today's Price:
$554.84
Log in for customized pricingproduct specifications
Type
Beacon Light
Display
LED
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage:
125XBRxx24Dx: 24 VDC, 0.215A
125BRxx120Ax: 120 VAC, 50/60Hz, 0.108A
Wiring: 18" (45cm) 4-Wire Pigtail
Color: Amber, Blue, Clear, Green, Red
Flash Rate: Selectable through wire connection
125XBRM: Steady-On/Flashing (65 FPM)
125XBRZ: Steady-On/Lightburst (420FPM)
Projected LED Life: 148,000 hours
Mounting: On 1/2" or 3/4" NPT conduit using a 1/2" internal or 3/4" external conduit hub
Operating Temperature: -31° to 150°F (-35° to 66°C)
Enclosure Rating: NEMA 4X
Dimensions: 3.875"H x 3.875"H (98.4mm) x 3.25"W (82.6mm)
Weight: 0.5lbs (0.22 Kg)
Approvals: UL file E340873
Warranty: 1.5 years
product series features
- Available in 24 VDC or 120 VAC
- Available with amber, blue, green, red or white lens
- Available with gray or black base
- Option for panel or conduit mounting
- Available in dual mode Steady-On/Flashing LED or Steady-On/Lightburst LED versions
more information & related documents
Series Description
The Edwards Signaling 125XBR Class XBR XTRA-BRITE™ LED beacons are UL and cUL listed dual mode signaling devices, available in two versions, Steady-On/Flashing (125XBRM) and Steady-On/Lightburst (125XBRZ). Both versions feature a corrosion resistant Type 4X enclosure and can be panel or conduit mounted. The lens is made of shatter resistant polycarbonate. Both the 125XBRM and 125XBRZ beacons are dual mode devices, maximizing application flexibility while reducing inventory costs. It can also be panel-mounted using the mounting gasket provided with the unit.
Kele Description
LED ON-FLASH BEACONS BLUE 120VAC BLACK BASE
Manufacturer
Edwards Signaling
Related Documents
125XBR Series Datasheet
