105BX | Edwards Signaling | Alarms & Indication
SURFACE MOUNT BOX
Brand:Edwards Signaling
MPN:105BX
SKU:105BX
product specifications
Mount
Surface
Type
Accessory
product series specifications
Supply Voltage:
105XBRMx24D: 24 VDC, 0.215A
105XBRMx120A: 120 VAC 50/60Hz, 0.108A
Wiring: 18" (45cm) 2 wire pigtail
Color: Amber, Blue, Green, Red, White
Flash Mode: Steady on or 65 FPM (dipswitch selectable)
Projected LED Life: 148,000 hours
Mounting: 1/2" pipe mount attachment, outlet box attachment, or wall mounting bracket
Operating Temperature: -31° to 212°F (-35° to 100°C)
Enclosure Rating: NEMA 4X
Dimensions: 4.75" x 3.75" (121 x 95mm)
Weight: 1.4 lbs (0.63 kg)
Approvals: UL Listed E212211
Warranty: 1.5 years
product series features
- Available in 24 VDC or 120 VAC
- Three mounting bases: 3/4 in. pipe mount attachment, outlet box attachment, or wall mounting bracket
- 65 fpm mode field-selectable via dipswitch
- Immune to shock and vibration
more information & related documents
Series Description

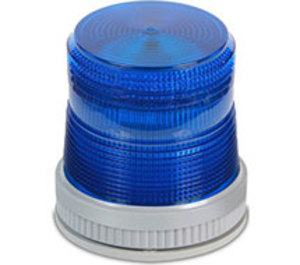

The Edwards Signaling 105XBRM Series XTRA-BRITE Adverse Location LED visual signals are heavy duty, reliable, UL, cUL beacons. The 105XBRM Series features a UL listed Type 4X enclosure and is UL Listed for Marine Use. The 105XBRM Series has three different configurations for mounting that include the 105BX junction box, the 105BM mounting bracket, and the 105PM pipe mount attachment. The unit can be mounted on 3/4 in. NPT using the 105PM pipe attachment. It can also be surface mounted using the 105BX junction box, or wall mounted using the 105BX junction box with the 105BM mounting bracket. They can only be used with metallic wiring systems when installed at the end of the run.
Kele Description
SURFACE MOUNT BOX
Manufacturer
Edwards Signaling
Related Documents
105XBRM Installation Instructions
