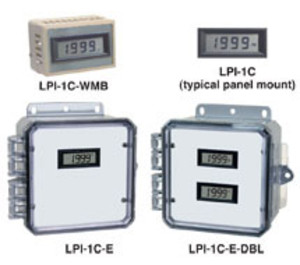

* product series image displayed
LPI-1C-E | Kele | Alarms & Indication
LCD INDICATOR W/ENCL
Brand:Kele
MPN:LPI-1C-E
SKU:LPI-1C-E
10 in stock
SHIPS TODAY!
product specifications
Enclosure Rating
NEMA 4X
Type
Display Panel
Display
LCD
Supply Voltage (Nominal)
24 VDC
product series specifications
- Accuracy:
- 0.1% of scale
- Input Signal:
- 4 - 20 mA loop-powered
- Input Impedance:
- 300Ω nominal @ 24 VDC
- Range:
- -1999 to 1999, D.A. only
- Digit Size:
- 0.5" (1.27 cm)
- Decimal Point:
- Three positions or none (1.0.0.0)
- Display Color:
- Black
- Panel Clearance:
- 1.97" (5.00 cm)
- Cutout Requirement:
- 1.00" H x 2.40" W (2.54 x 6.10 cm)
- Operating Temperature:
- 32° to 122°F (0° to 50°C)
- Operating Humidity:
- 95% non-condensing
- Dimensions:
- Display:
- 1.11" H x 2.51" W (2.82 x 6.38 cm)
- E (NEMA 4X):
- 6.0‚Ä=H x 6.0‚Ä=W x 3.0‚Ä=D
- :
- (15.2 x 15.2 x 7.62 cm)
- WMB:
- 2.12‚Ä=H x 3.12'‚Ä=W x 1.75‚Ä=D
- :
- (5.4 x 7.94 x 4.45 cm)
- Weight:
- 0.14 lb (0.06 kg) (display only)
- Approvals:
- RoHS
- Warranty:
- 1 year
product series features
- Indication of 4-20 mA signal in desired scale
- 3-1/2 digit LCD display
- Snap-in panel mounting
- Easy-to-read digits
- NEMA 4X enclosure available
- Precalibrated for desired range
- Negative-to-positive indication
- Jumper-selectable engineering unit display
more information & related documents
Series Description
The LPI-1C-A, LPI-1C-G, LPI-1C-R LCD display panels are brightly lit 3-1/2 digit color LCD panel displays. Ideal for building automation systems, BAS, and HVAC applications, these panels display a 4-20 mA signal and use 24 Volt DC power. Each panel display is available with amber, green, or red digits. Models LPI-1CA, G, and R also feature jumper-selectable built-in engineering units of °F, °C, PSI, %, or no units. The same power supply can be used to provide power to the 4-20 mA loop and the display panel.
Kele Description
LCD INDICATOR W/ENCL
Manufacturer
Kele
Related Documents
LPI-1C Datasheet x
