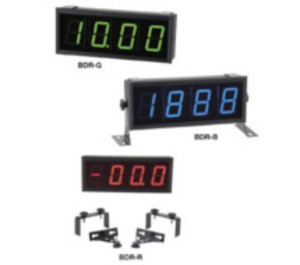

* product series image displayed

BDR-999-G-120 | Kele | Alarms & Indication

GREEN LED 3-1/2 DIGIT DISPLAY 2.3 HIGH 120 VAC

Brand:Kele

MPN:BDR-999-G-120

SKU:BDR-999-G-120

List Price:

$516.00

Today's Price:

$268.32

catalog page

Lead time of 4 days. Chat with Kele experts now

product specifications

Color

Green

Type

Display Panel

Display

LED

Supply Voltage (Nominal)

120 VAC

Mount

Wall,Ceiling,Panel

product series specifications

Supply Voltage: 90-240 VAC, 12 VA / 10.5 - 30 VAC/VDC 6VA

Accuracy: ±1% full scale plus 1 count

Input Current: 4-20 mA, 300 Ω

Input Voltage DC: 0-5 VDC, 0-10 VDC, 1 MΩ

Range: -1999 to 1999

Input Monitor: DC power (no offset, 10 MΩ 0-200 mVDC, 0-2 VDC, 0-20 VDC)

Digit Span: 3-1/2 digit

Decimal Point: Off, DP1, DP2, DP3 (1999, 199.9, 19.99, 1.999)

Display Color: Red, green, blue

Display Size: 2.3" (5.8 cm)

Display Type: Seven-segment LED

Calibration: Zero and span, non-interactive

Cutout Requirement: 4.0″H x 10.4″W x 2.0″D (10.0 x 26.4 x 5.0 cm)

Mounting: Panel: Steel U-bracket

Mounting: Wall/ceiling: Steel swivel bracket

Operating Temperature: 14° to 122°F (-10° to 50°C)

Operating Humidity: 5-95% RH non-condensing

Enclosure Rating: NEMA 1, aluminum and plastic

Dimensions: 4.2″H x 10.6″W x 2.2″D (10.6 x 27.0 x 5.5 cm)

Weight: 2.8 lb (1.3 kg)

Approvals: RoHS

Warranty: 1 year

product series features

Large 2.3 in. (5.8 cm) digital display
LED colors in red, green or blue
3-1/2 digit with negative signal as needed
Standard signal inputs: 4-20 mA, 0-10 VDC, 0-5 VDC
Wall, ceiling, or panel mount
Non-interactive zero and span pots
Pre-calibration

more information & related documents

Series Description

The Kele BDR Series Big Display Readout has large 2.3 in. size LED digits. It provides 3-1/2 digits and comes in three bright LED colors: red, green or blue. The BDR has a selectable decimal point position and accommodates negative sign readouts. The readouts are in linear proportion to the 4-20mA, 0-10VDC, 0-5VDC signal inputs or a voltage monitor input from 0-20VDC. These displays are easy to field calibrate with non-interactive zero and span pots as well as free pre-calibration service from Kele at time of order.

Kele Description

GREEN LED 3-1/2 DIGIT DISPLAY 2.3 HIGH 120 VAC

Manufacturer

Kele
