ES-NC | Kele | Alarms & Indication
NORMALLY CLOSED CONTACT
Brand:Kele
MPN:ES-NC
SKU:ES-NC
List Price:
$24.60
Today's Price:
$12.79
Log in for customized pricingproduct specifications
Type
Contact Block
Switch Action
NC
product series specifications
Contact Rating:
ES-NO: 10A, 600 VAC
ES-NC: 2.5A, 600 VDC
Contact Configuration: 4 Maintained or 6 Momentary max.
Mechanical Life: Contact 10 million operations
Contact Type: Self-cleaning silver contacts
Contact Resistance: <25 milli-ohms, closed
Operating Temperature: -13° to 158°F (-25° to 70°C)
Enclosure Rating: NEMA 1, 3R, 4, 4X, 12, 13 available
Dimensions: See Catalog Page
Weight: See Catalog Page
Approvals: UL Listed NISD File# E348889, CSA, NEMA
Warranty: 1 year
product series features
- Highly visible yellow/black background
- UL listed for Category NISD Emergency Stop Devices, File #E348889
- Various NEMA rated enclosures
- 40mm Red Mushroom Operators
- 1 N.O. and 1 N.C. contact included
more information & related documents
Series Description

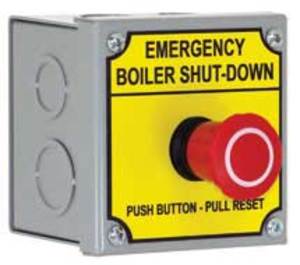

The E-Stop ESM Series emergency operator stations offer a highly visible method to shut down equipment, initiate alarms, or give a controller input during emergency conditions. Operation is with the push of a red 40mm mushroom-head push-button. The button may be reset with a pull or twist of the mushroom head, depending on the button style.
Kele Description
NORMALLY CLOSED CONTACT
Manufacturer
Kele
Related Documents
ESM-M1S-PTL24 Series Terminal Layout
