ECS-22RE1R1Q-110A | Kele | Alarms & Indication
COMPACT E-STOP, NON ILLUMUNATING, 1NC 1NO, 24V, 22MM, SHROUD BUTTON GUARD
Brand:Kele
MPN:ECS-22RE1R1Q-110A
SKU:ECS-22RE1R1Q-110A
List Price:
$117.00
Today's Price:
$60.84
Log in for customized pricingproduct specifications
Type
Push Twist
Display
Emergency Stop
Supply Voltage (Nominal)
600 VAC
product series specifications
Approvals: UL, cUL, CE, CCC, TUV, and IP65 (from the front panel)
Warranty: 1 year unlimited
Electrical:
Rated thermal current: 10A
Rated insulation voltage: 650V
Utilization category: AC-15(A600) or Ue 240V / Ie 3A Ue 380V / Ie 1.9A DC-13(P600) or Ue 250V / Ie 0.55A
Minimum switching capacity ref.: 3V DC/AC, 5mA
Dielectric strength: 2500V AC, 1 min
Insulation resistance: 100MO min. at 500V DC
Contact resistance: 50mO max. (initial)
Mechanical and Enviromental:
Operating temperature: -25°C ~ +70°C (without icing or condensation)
Storage temperature: -40°C ~ +85°C
Humidity: 45% ~ 85% RH
Degree of protection: IP65 (from the front of the panel)
Degree of contamination: 3
Vibration resistance: 10-55Hz single amplitude 0.5mm
Shock resistance: 100 m/s² (10G) (malfunction); 1000 m/s² (100G) (destruction)
Mechanical Life: 300,000 operations frequency 1800 operations/hr.
Electrical Life: 100,000 operations frequency 1800 operations/hr.
Operation Force (from 1a1b) ref.: 25N
Operation travel: Over 4 mm
Connection type: M3.5 screw connection
Direct opening action: Direct opening mechanism of NC contact to open the circuit
product series features
- Easy to install in compact places.
- Protective shroud for preventing accidental activation.
- Three contact block configuration.
- Easy installation of contact blocks.
- Option of adding/swapping NC and NO contact blocks- Kits.
- Useful in various Industrial and Commercial Industries: HVAC(R), Building Automation Systems; Commercial applications; Manufacturing - automotive/heavy equipment, marine/aviation, glass and plastics;Food and beverage packaging, distribution; Material handling packaging, moving; Oil and gas mining/extracting, refining, processing; Water/wastewater; Metals - mining, refining, processing, forming; Amusement park rides; And many, many more!
more information & related documents
Series Description

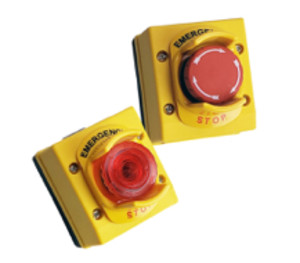

The Kele Brand Compact Emergency Operator Stations (E-Stops) offer a highly visible and compact emergency stop station to shut down equipment, initiate alarms/sirens, or give a controller input during emergency conditions. Kele Compact E-Stops can be installed in any tight places or on machines. Both non-illuminated and illuminated standard parts come with a shroud, 1NC, and 1NO contact blocks assembled. Kits are also available with an option of adding another contact block of your choice to meet any operational needs. E-Stop operation is with the push of a red 40mm mushroom-head push-button. The button may be reset with a twist of the mushroom head. Shroud prevents accidental push of the emergency button. Kele E-Stops are rated for safety and quality in accordance with UL, cUL, CE, CCC, TUV, and IP65 standards.
Kele Description
COMPACT E-STOP, NON ILLUMUNATING, 1NC 1NO, 24V, 22MM, SHROUD BUTTON GUARD
Manufacturer
Kele
ECS-22RE1Q-110 Data / Installation Sheet
