RAD-1 | Kele | Alarms & Indication

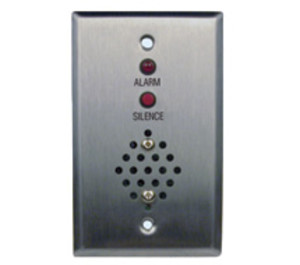

REMOTE ALARM INDICATION STATION
Brand:Kele
MPN:RAD-1
SKU:RAD-1
product specifications
Enclosure Rating
NEMA 1
Mount
Snap-In Panel
Type
Indicator
Display
LCD
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
Supply Voltage: 24 VAC @ 100 mA or 24 VDC @ 34 mA
Alarm Delay Time: None, or 1 to 31 seconds in one-second increments, or 10 to 310 seconds in 10-second increments
Alarm Horn: Continuous or pulsed tone, 70 db min
Alarm Repeat Time: None, or 1 to 7 in one-minute increments, or 10 to 70 minutes in 10-minute increments
Alarm Relay: SPDT, 0.5A @ 24 VAC, 1.0A @ 30 VDC, Follows horn or lamp selectable
Connections: Screw terminals, 22 - 14 AWG wires
Mounting: Brushed stainless steel plate mounts to standard single junction box, with two screws provided
Dimensions: 4.5"H x 2.75"W x 1.0"D (11.4 x 7.0 x 2.5 cm)
Weight: 0.19 lb (0.07 Kg)
Approvals: RoHS
Warranty: 18 months
product series features
- Red alarm LED
- Alarm horn, continuous tone or pulsed
- Alarm horn silence switch
- Adjustable alarm delay time
- Adjustable alarm repeat time
- Alarm status SPDT relay
- Relay operates with the alarm horn option
more information & related documents
Series Description
Ideal for Building Automation System BAS and HVAC applications, the RAD-1 is a remote indication station for the alarm system. Mounted on a stainless steel plate, the alarm indicator can be wall mounted. Any contact closure alarm initiating device that can switch 24 Volt AC or 24 Volt DC can be used with the RAD-1.
Kele Description
REMOTE ALARM INDICATION STATION
Manufacturer
Kele
