STRN-CRK-01 | Honeywell | Actuators & Dampers
CRANK ARM KIT FOR 27, 44 IN-LB ACT
Brand:Honeywell
MPN:STRN-CRK-01
SKU:STRN-CRK-01
List Price:
$180.00
Today's Price:
$93.60
Log in for customized pricingproduct specifications
Torque
44 in-lb
Type
Crank Arm
product series specifications
Input Impedance: 100 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA
Motor: 2-position DC with brushes; Modulating: Brushless DC
Wiring: Enclosed terminals
Action: 2-position Mounting orientation direct/reverse acting; Modulating: Switch selectable direct/reverse acting Rotation 95° ± 3°
Drive Time: 2-position: 45 seconds; Modulating: 90 seconds
Spring Return Time: 27, 44 in-lb: 25 seconds; 88, 175 in-lb: 20 seconds
Manual Override: Manual crank (88, 175 in-lb only) Noise <50 db @ 3' (1m)
Life Expectancy: 60,000 cycles, 1.5 million repositions
Operating Temperature: MSxx03, xx05 2-pos.: -22° to 150°F (-30° to 65°C); MSxx03, xx05 Mod.: -40° to 150°F (-40° to 65°C); MXxx10, xx20: -40° to 140°F (-40° to 60°C) Operating Humidity 5 to 95% RH
Enclosure Rating: NEMA 2 (IP54)
Approvals: cULus, CE, C-tick, plenum rated
Warranty: 5 years
product series features
- Self-centering shaft adapter for steady operation
- Auto adapt on modulating models for stroke precision
- Selector switch for proportional or floating control
- Detachable wiring cover
more information & related documents
Series Description

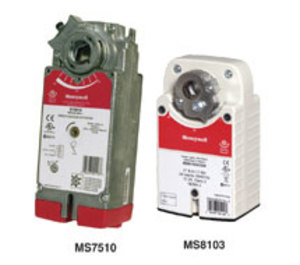

The Honeywell MS Series direct coupled damper actuators provide damper control for spring return applications and are controlled via all of the standard control signals.
Kele Description
CRANK ARM KIT FOR 27, 44 IN-LB ACT
Manufacturer
Honeywell
